ADTRAN NetVanta 4300 Series User Manual

Physical Descriptions NetVanta 4300/4400 Series
18 Copyright © 2019 ADTRAN, Inc. 61200890E2-34T
NetVanta 4430 Domestic Shipping Contents
Domestic shipments of the NetVanta 4430 include the following items:
• NetVanta 4430 base unit with attached mounting ears
• Quick start guide
• Detachable AC power cord
NetVanta 4305 International Shipping Contents
International shipments of the NetVanta 4430 include the following items:
• NetVanta 4430 base unit with attached mounting ears
• Quick start guide
• All necessary power cords

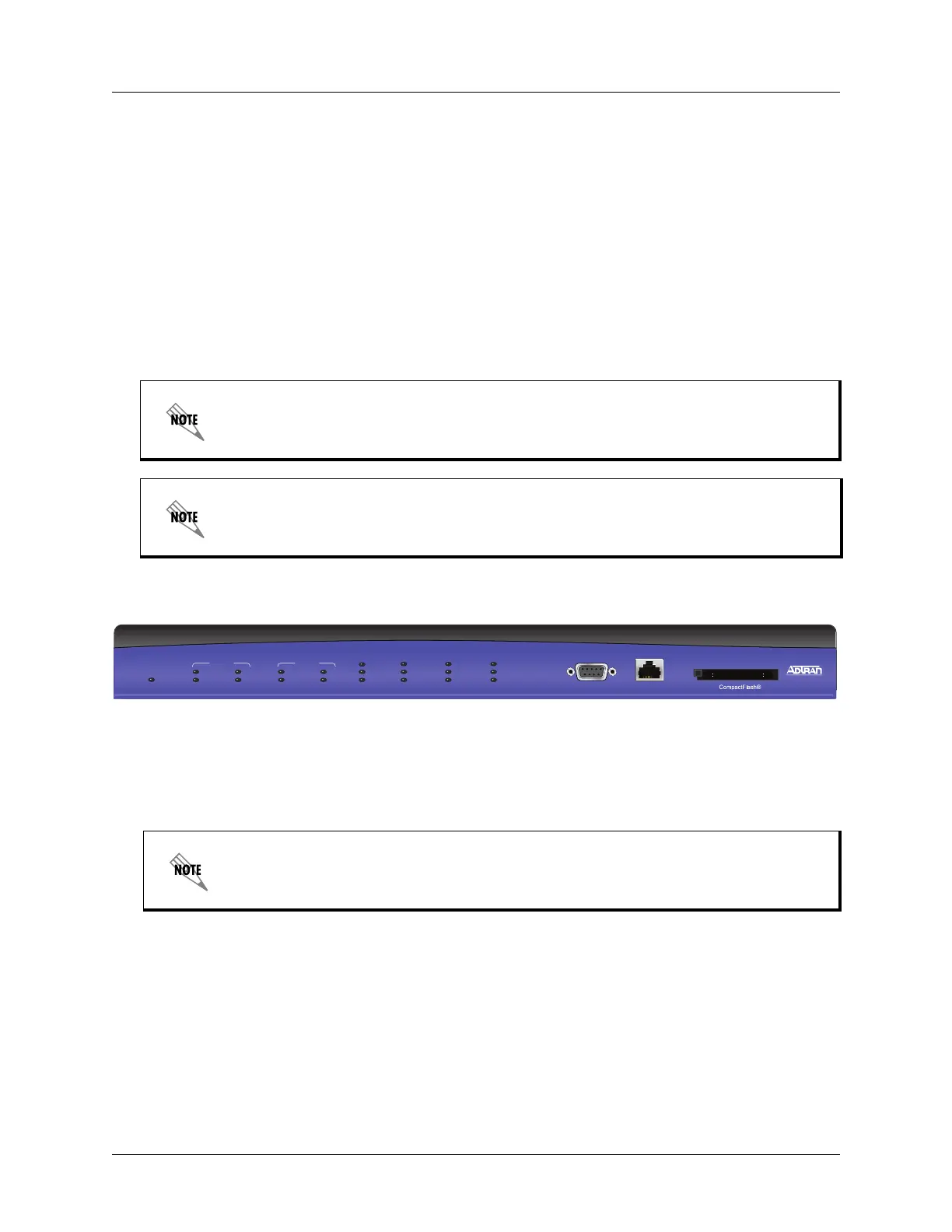

The NetVanta 4430 front
panel is shown in Figure 4. Front panel LED descriptions are given in Table 1 on
page 20.
STATUS
NET 2
WAN
DBU
TD
RD
TD
RD
LNK
GIG 1
TD
RD
LNK
GIG 1
TD
RD
LNK
ETH 1
NET 1
WAN
DBU
TD
RD
NetVanta 4430
STAT
ACT
TEST
WIDE
MODULE
CONSOLE ETH 0/1
Figure 4. NetVanta 4430 Front Panel Layout
CONSOLE Interface
The CONSOLE interface is an RS-232 serial port (DCE), which provides for local management and
configuration (via a DB-9 female connector). Table A-4 on page 57 shows the
CONSOLE port pinouts.
10/100Base-T Ethernet Interface and Activity LEDs
The Ethernet port (ETH 0/1) is an RJ-48. See Table A-1 on page 56 for the Ethernet port pinouts. The
Ethernet port provides the following:
• 10Base-T or 100Base-T with a single connector
• Auto-negotiation
•CSMA/CD
• IEEE 802.3 compatibility
• Auto MDIX
Option module shipping contents are given in Option Module Shipping Contents on
page 22.
The NetVanta 4430 ships with a 200-pin, 256 MB SODIMM (P/N 1200813E1)
installed. It can be upgraded to provide 512 MB using the 200-pin, 512 MB SODIMM

(P/N 1200814E1).
Connection directly to an external modem requires a cross-over cable.
