Option Modules NetVanta 4300/4400 Series
36 Copyright © 2019 ADTRAN, Inc. 61200890E2-34T
NetVanta ADSL NIM, Annex B (P/N 1202889E1)
The NetVanta ADSL, Annex B (see Figure 16) adds ADSL capability to the NetVanta 4300/4400 Series.
The module provides a single 2.048 Mbps network interface. See Table A-10 on page 59 for the pinouts.
See Table A-14 on page 61 for the DBU connector pinouts. An optional DIM is required for
dial backup
applications.

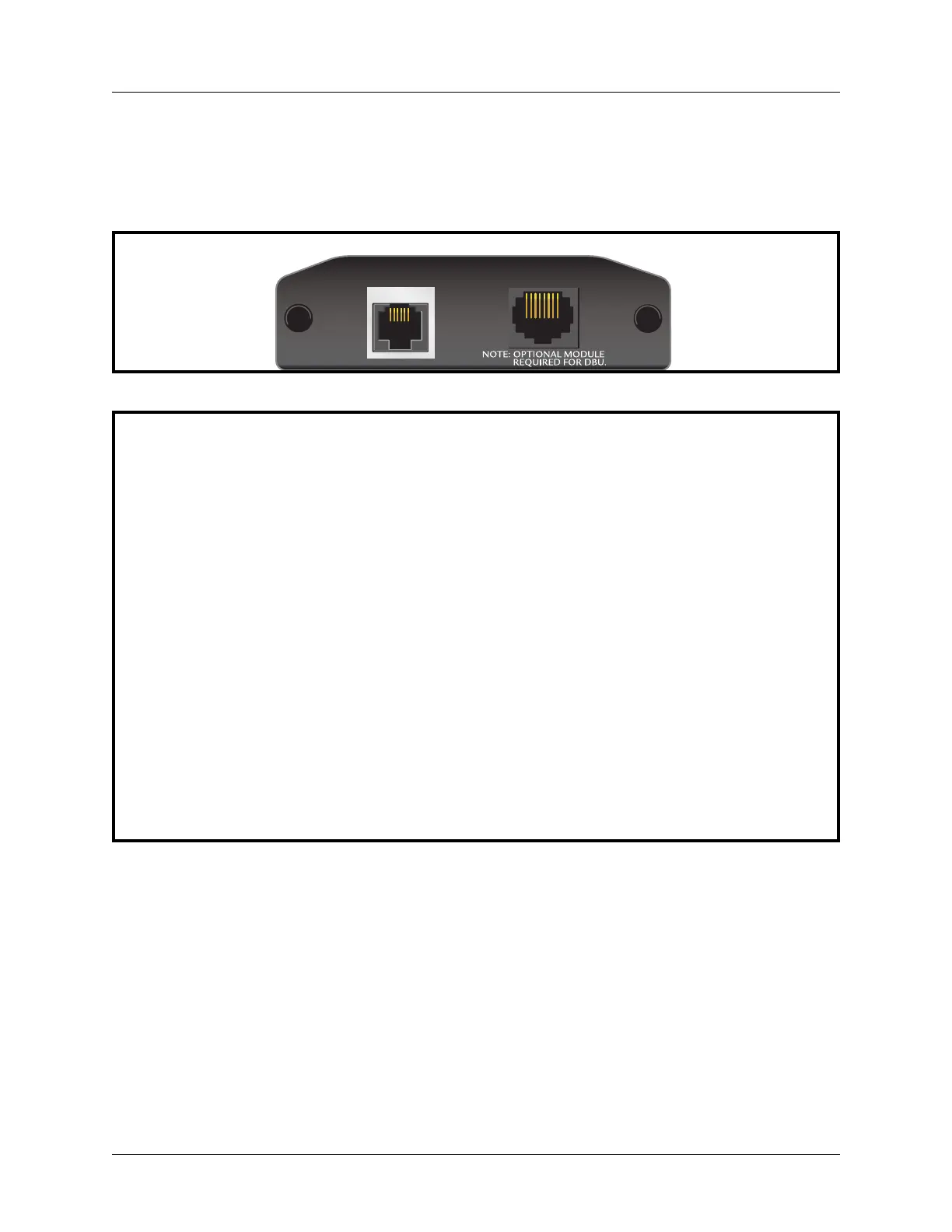

Figure 16. NetVanta ADSL NIM, Annex B
Features and Specifications
ADSL Interface
• ADSL over ISDN, Annex B
• Supported Standards: ITU-T G.992.1
Annex B (G.dmt)
• Connector: RJ-11C (6-pin jack,
inner pair)
ATM
• Multiple Protocol over AAL5
(RFC 2684)
• PPP over ATM (RFC 2364)
• PPP over Ethernet (RFC 2516)
• ATM Forum UNI 3.1/4.0 PVC
• ATM class of service (UBR)
• ATM F5 OAM
• Up to 16 virtual circuits
Compliance
• EMC - see Electromagnetic
Compatibility (EMC) Table on page 6.
• AS/ACIF S043
• EN 60950-1
• IEC 60950-1
• AS/NZS 60950-1
• RoHS Compliant (1200889E1 only)
(Telecommunications exemption)
Environmental
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -20°C to 70°C
• Relative Humidity: Up to 95 percent,
noncondensing
Physical
• Dimensions: 2.75-inch W x 4.25-inch D
