ADTRAN NetVanta 4300 Series User Manual

NetVanta 4300/4400 Series Option Modules
61200890E2-34T Copyright © 2019 ADTRAN, Inc. 37
NetVanta SHDSL NIM, Annex A (P/N 1200936E1)
The NetVanta SHDSL NIM, Annex A (shown in Figure 17) provides a WAN-SHDSL interface for the
NetVanta 4000 Series. See Table A-11 on page 59 for the SHDSL connector pinouts.
WAN-SHDSL
ANNEX A

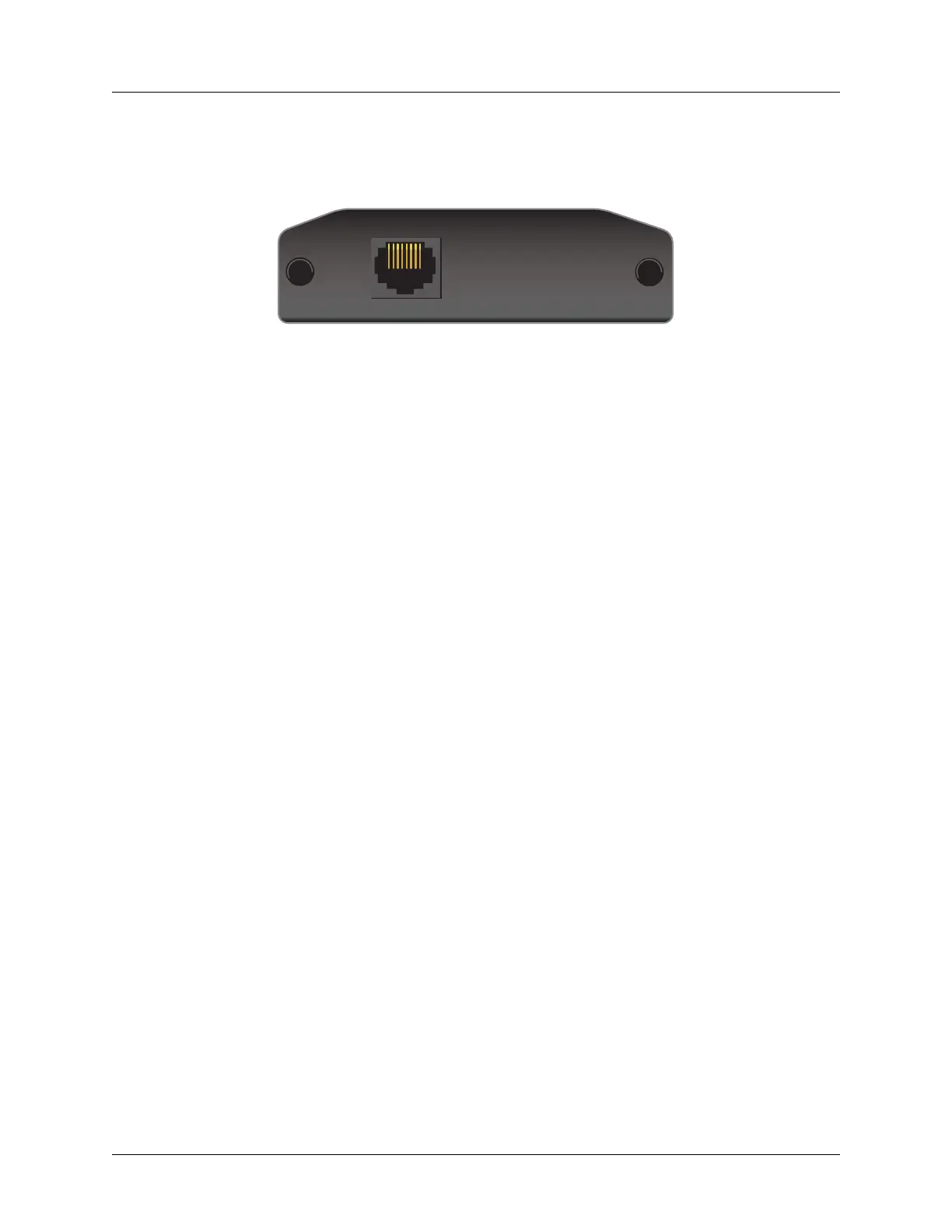

Figure 17. NetVanta SHDSL NIM, Annex A
Features and Specifications
Operating Mode
• Line termination (CO)
• Network termination (CPE)
G.SHDSL Interface
• Supported Standards: ITU-T G.991.2,
SHDSL Annex A
M-pair bonding of 2 pairs - ITU-T
G.991.2
• Line Rate (2-wire mode): 192 to
2304 kbps in 64k increments
• Line Rate (4-wire mode): 384 to
4608 kbps in 128k increments
• Payload: ATM (AAL5)
• Line Code: TC-PAM
• Connector: RJ-45
Clock Source
• CPE Operating Mode: Network
• CO Operating Mode: Internal
Diagnostics
• Network loopbacks (local and remote)
• Alarm generation and detection
• Programmable alarm threshold setting for
loop attenuation and signal-to-noise ratio
Compliance
• EMC - see Electromagnetic
Compatibility (EMC) Table on page 6.
• ACTA/FCC Part 68
• UL/CUL 60950-1
• RoHS Compliant (Telecommunications
exemption)
Environmental
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -20°C to 70°C
• Relative Humidity: Up to 95 percent,
noncondensing
Physical
• Dimensions: 2.75-inch W x 4.25-inch D
