ADTRAN NetVanta 4300 Series User Manual

Option Modules NetVanta 4300/4400 Series
26 Copyright © 2019 ADTRAN, Inc. 61200890E2-34T
NetVanta T1/FT1 NIM (P/N 1202862L1)
The T1/FT1 NIM (shown in Figure 7) provides a T1 (full T1 or fractional T1) WAN interface for the
NetVanta 4300/4400 Series. See T
able A-6 on page 58 for the WAN-T1 connector pinouts and see 
Table A-14 on page 61 for the DBU connector pinouts. An optional
DIM is required for dial backup
applications.
WAN-T1 DBU

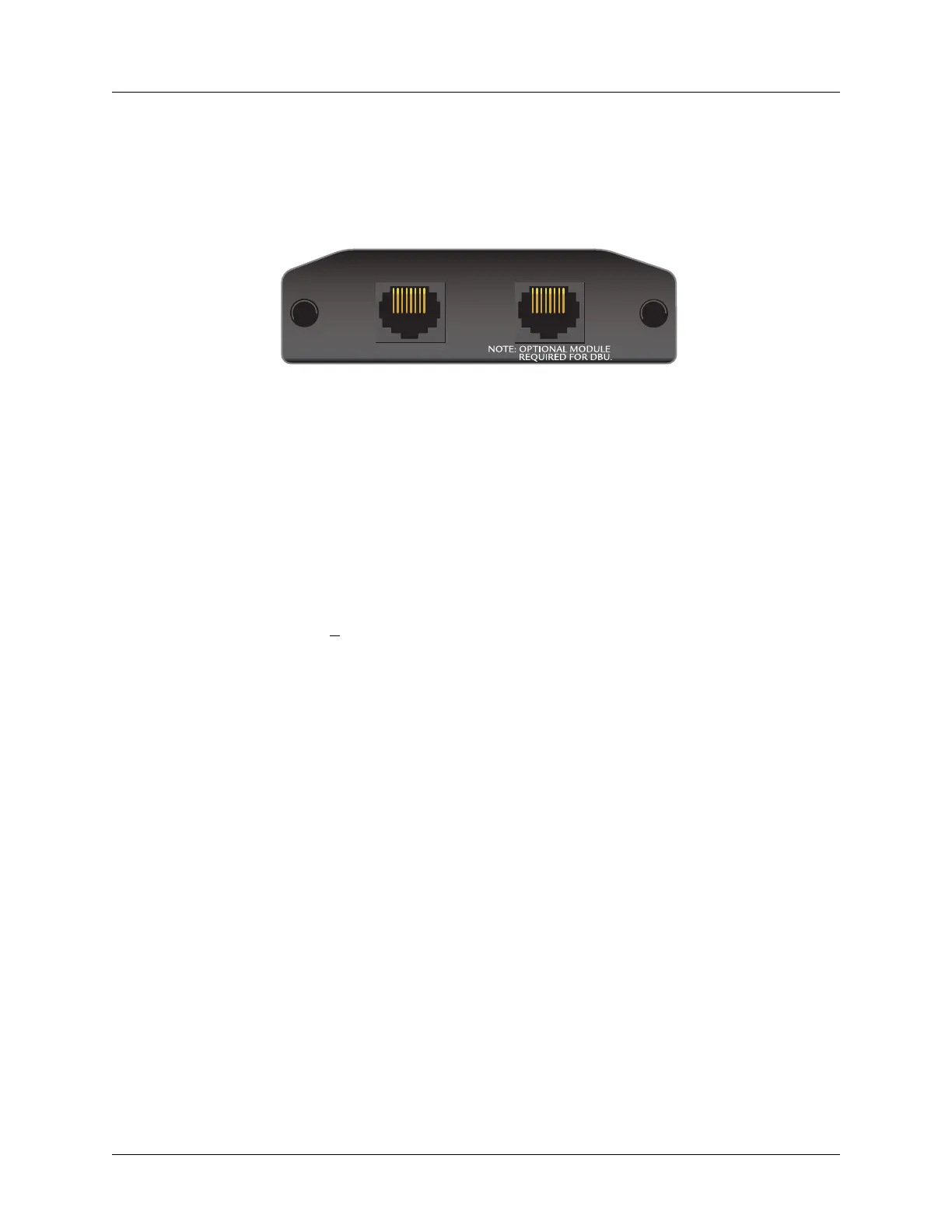

Figure 7. NetVanta T1/FT1 NIM
Features and Specifications
Operating Modes
• Frame Relay, Multilink Frame Relay
• PPP, Multilink PPP
• HDLC
T1/FT1 Interface
• Supported Standards: AT&T TR 62411,
AT&T TR 65016, ANSI T1.403, 
Bellcore TR 194
• Line Rate: 1.544 Mbps +
75 bps
• Line Code: AMI or B8ZS
• Framing: D4 (SF) or ESF
• FT1 Line Rate: DS0 channelized (multiples
of 64 kbps)
• Input Signal: 0 to -36 dB (DS1)
• Line Build Out: 0, -7.5, -15, -22.5 dB
(long), 0 to 655 ft (short)
• DS0 Assignment: Programmable
• Connector: RJ-48C
Clock Source
•Network
•Internal
Diagnostics
• Test Pattern Generation and Detection:
511, QRSS, all ones, all zeros
• Network loopbacks (local and remote);
responds to both inband and FDL loop
codes
• Alarm generation and detection
• Network and user sets of performance data
(15 minutes and 24 hours)
Compliance
• EMC - see Electromagnetic Compatibility
(EMC) Table on page 6.
• ACTA/FCC Part 68
• IC CS-03
• UL/CUL 60950-1
Environmental
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -20°C to 70°C
• Relative Humidity: Up to 95 percent, 
noncondensing
Physical
• Dimensions: 2.75-inch W x 4.25-inch D
