NetVanta 4300/4400 Series Option Modules
61200890E2-34T Copyright © 2019 ADTRAN, Inc. 27
NetVanta T1/FT1 NEBS NIM (P/N 1200862L2#NEBS)
The T1/FT1 NEBS NIM (see Figure 8) T1 WAN interface for the NetVanta 4305 DC. The T1 NEBS NIM
is NEBS Level 3 compliant, and provides a full or fractional T1 network
interface. See WAN-T1 Connector
Pinouts on page 58 for the WAN-T1 connector pinouts.
WAN-T1

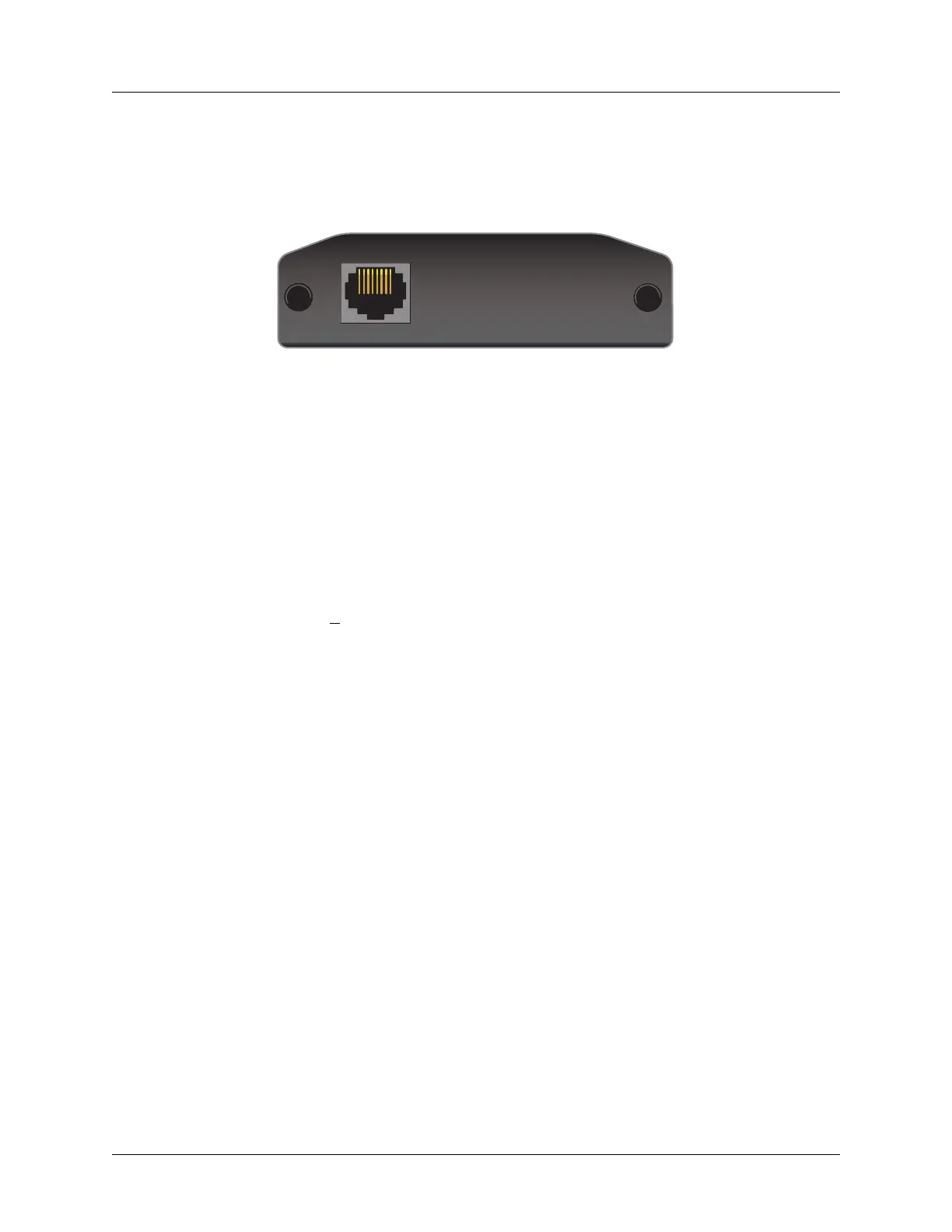

Figure 8. NetVanta T1/FT1 NEBS NIM
Features and Specifications
Operating Modes
• Frame Relay, Multilink Frame Relay
• PPP, Multilink PPP
• HDLC
T1/FT1 Interface
• Supported Standards: AT&T TR 62411,
AT&T TR 65016, ANSI T1.403, 
Bellcore TR 194
• Line Rate: 1.544 Mbps +
75 bps
• Line Code: AMI or B8ZS
• Framing: D4 (SF) or ESF
• FT1 Line Rate: DS0 channelized (multiples
of 64 kbps)
• Input Signal: 0 to -36 dB (DS1)
• Line Build Out: 0, -7.5, -15, -22.5 dB
(long), 0 to 655 ft (short)
• DS0 Assignment: Programmable
• Connector: RJ-48C
Clock Source
•Network
•Internal
Diagnostics
• Test Pattern Generation and Detection:
QRSS, 511, 2
15
- 1, 2
20
- 1, all ones, 
all zeros
• Network loopbacks (local and remote);
responds to inband and FDL loop codes
• Alarm generation and detection
• Network and user sets of performance data
(15 minutes and 24 hours)
Compliance
• EMC - see Electromagnetic Compatibility
(EMC) Table on page 6.
• NEBS Level 3
•GR-63-CORE
• GR-1089-CORE
• UL/CUL 60950-1
Environmental
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -20°C to 70°C
• Relative Humidity: Up to 95 percent, 
noncondensing
Physical
• Dimensions: 2.75-inch W x 4.25-inch D
