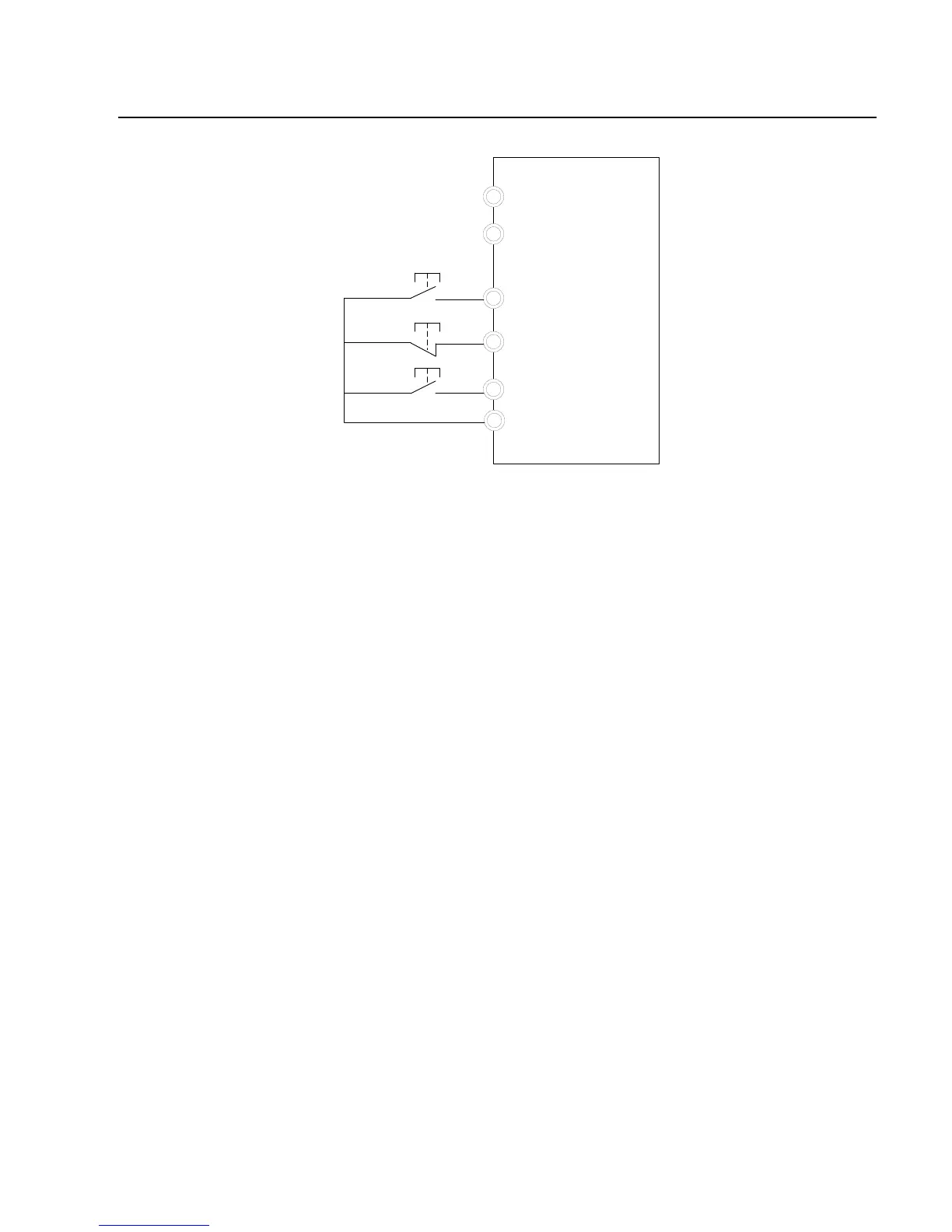

Fig.5-9 Three-line Running Mode 1
Where:
SB1: Stop button
SB2: Forward rotation button
SB3: Reverse rotation button
Dln is multifunctional input terminals of DI1 to DI4.In this way, it shall define the
corresponding terminal functions as No.3 function “Three-line Mode Running
Control”.
3: Three-line running mode 2: In this mode, Dln is enabled terminal, and the running
command
is given by FWD, while the direction is determined by the status of REV. Stop
command is
performed through disconnecting the DIn signal.
