Parameter Description
C220/C420G General Flux Vector Control Inverter User Manual
98
FWD
REV
COM/+24V
DIn
SB2
SB1
K
K
Running Direction
Selection
0
1
Forward Rotation
Reverse Rotation

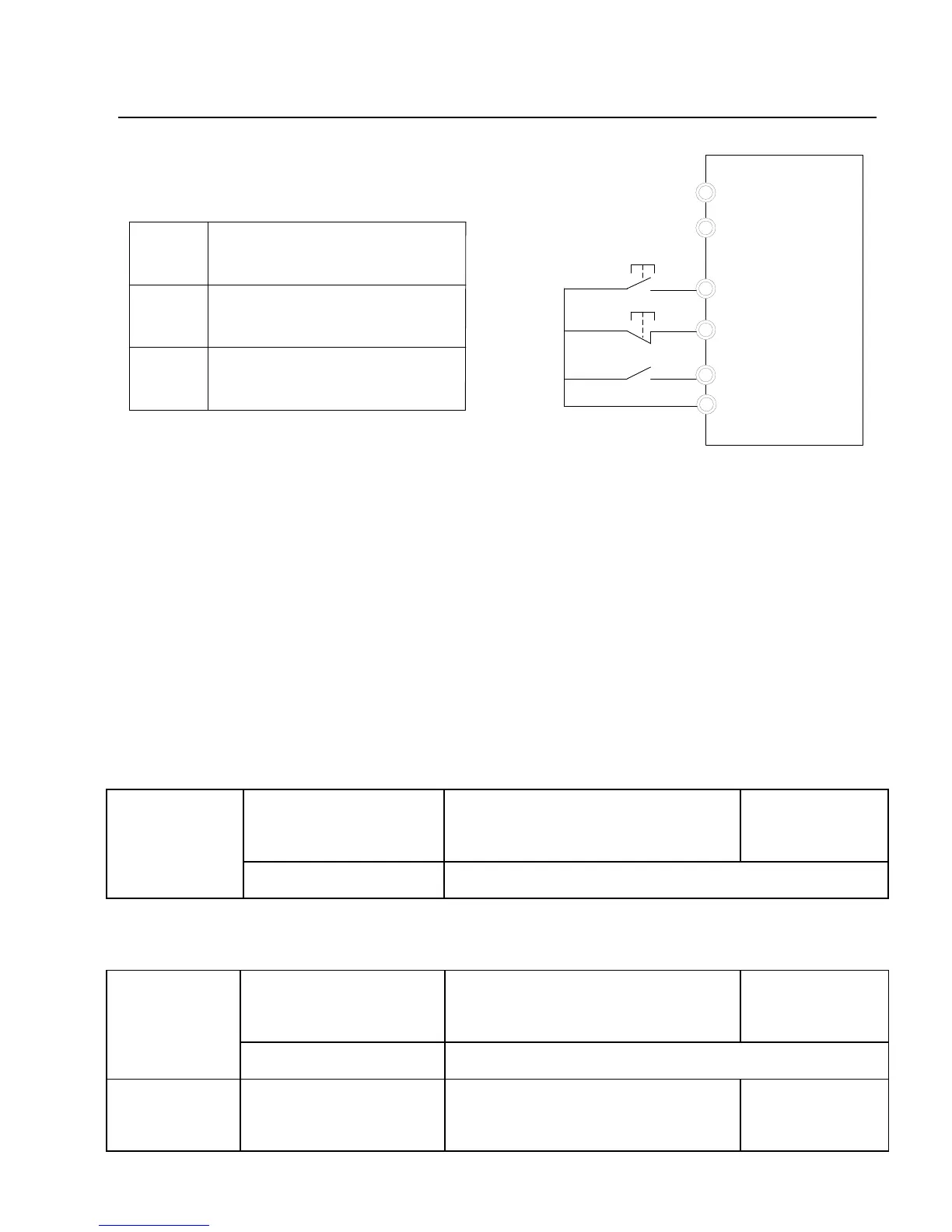

Fig.5-10 Three-line Running Mode 2
Where :
SB1: Stop button
SB2: Running button
Dln is multifunctional input terminals of DI1 to DI4. In this way, it shall define the
corresponding terminal functions as No.3 function “Three-line Mode running
Control”.
F5-12
Terminal
UP/DOWN Speed
Factory default value 1.00Hz/s
Setup range
0.01Hz/s
～
100.00Hz/s
Terminals UP/DOWN is used to adjust the change rate when setting the frequency.
F5-15
AI1 minimum
input
Factory default value 0.00V
Setup range
0.00V
～
10.00V
F5-16
AI1 minimum
input
Factory default value 0.0%
