Instrument Operation
Printer (Figure 3, Item 9)
The printer records on paper the displayed test results, sample
identification, and other necessary information.
Supervisor/Operator keyswitch (Figure 5)
The Operator position of the Supervisor/Operator keyswitch provides
a means of locking out the setup and calibration functions of the
instrument to help prevent unauthorized changes.
The Operator keyswitch position allows access to the sample and test
function only; the Supervisor keyswitch position allows access to the
setup, test and calibration functions, as well as the sample and test
functions.
RS-232 Port
Supervisor/Operator
Keyswitch
Barcode Port
Power Module

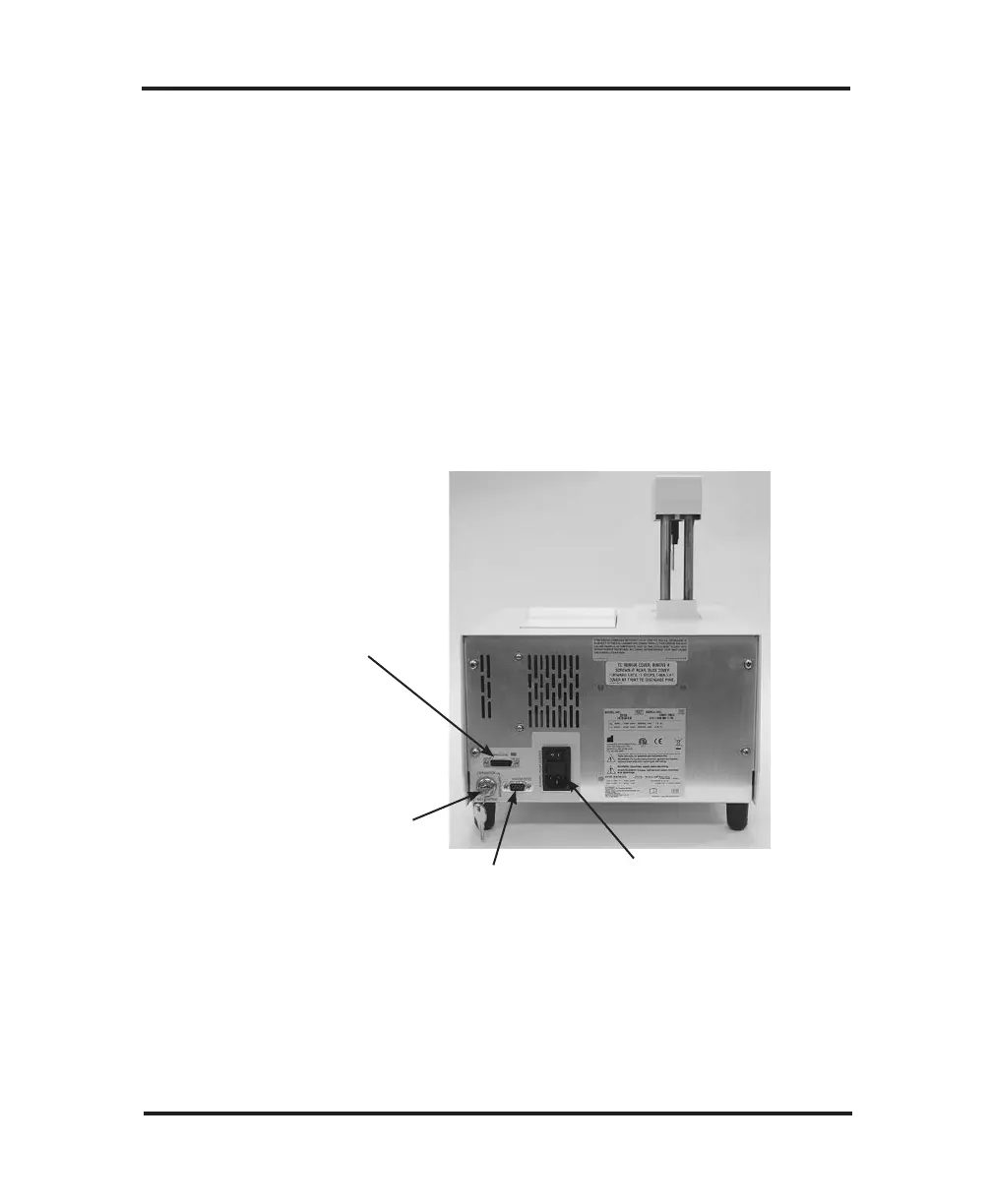

Figure 5: Back Panel
