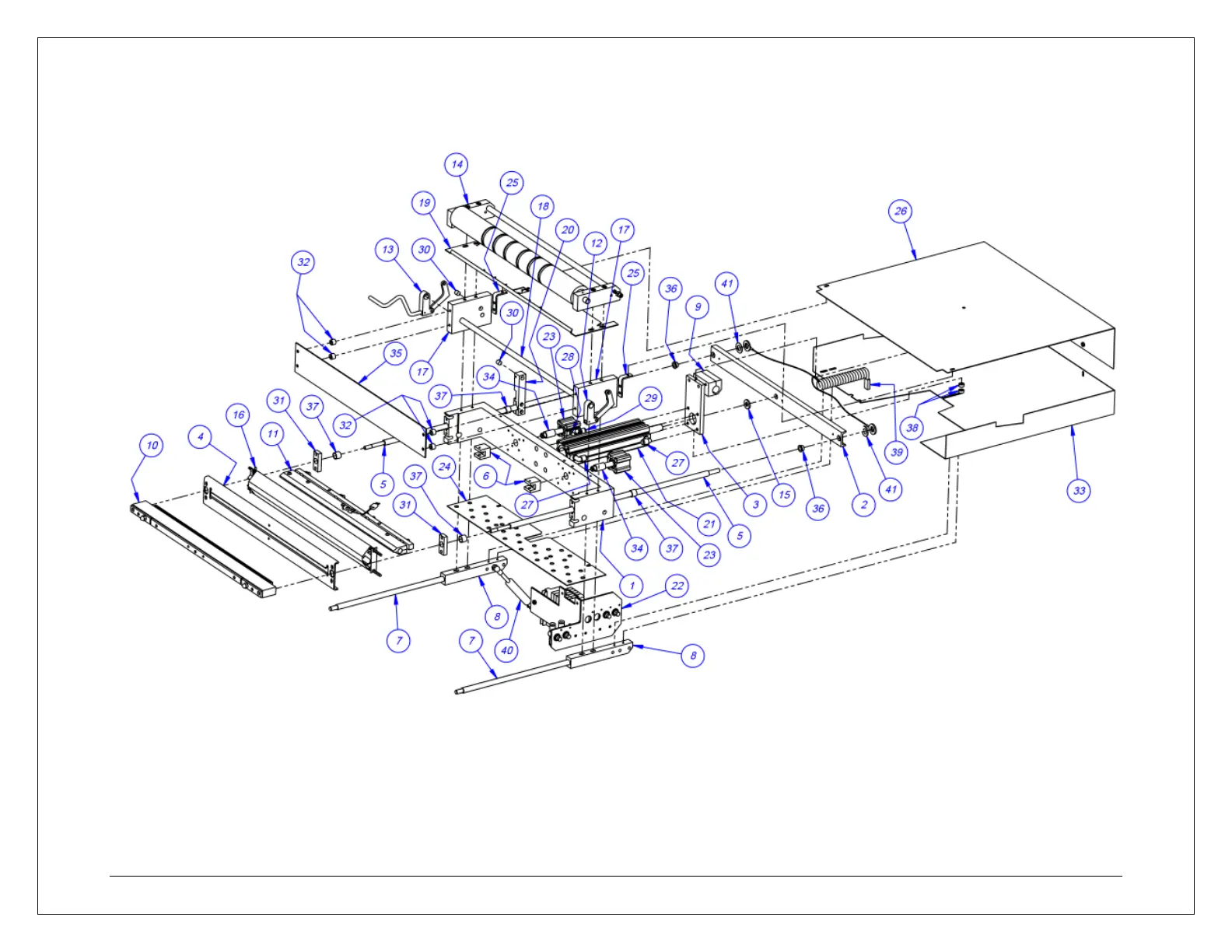

129 SEALER FRAME ASSEMBLY
*Note: Items 5, 7, and 21 will vary depending upon the Pass-Through size of the Bagger. Please note this when ordering parts from the Bill of
Materials shown above. For example, a Bagger with a 6.25” Pass-Through will use Seal Guide Rod TP-T1MB00033-W18-2, Shield Mounting
Rod TP-T1MB00144-2, and Main Cylinder TP-403242.
