ADAM-6300 User Manual 40

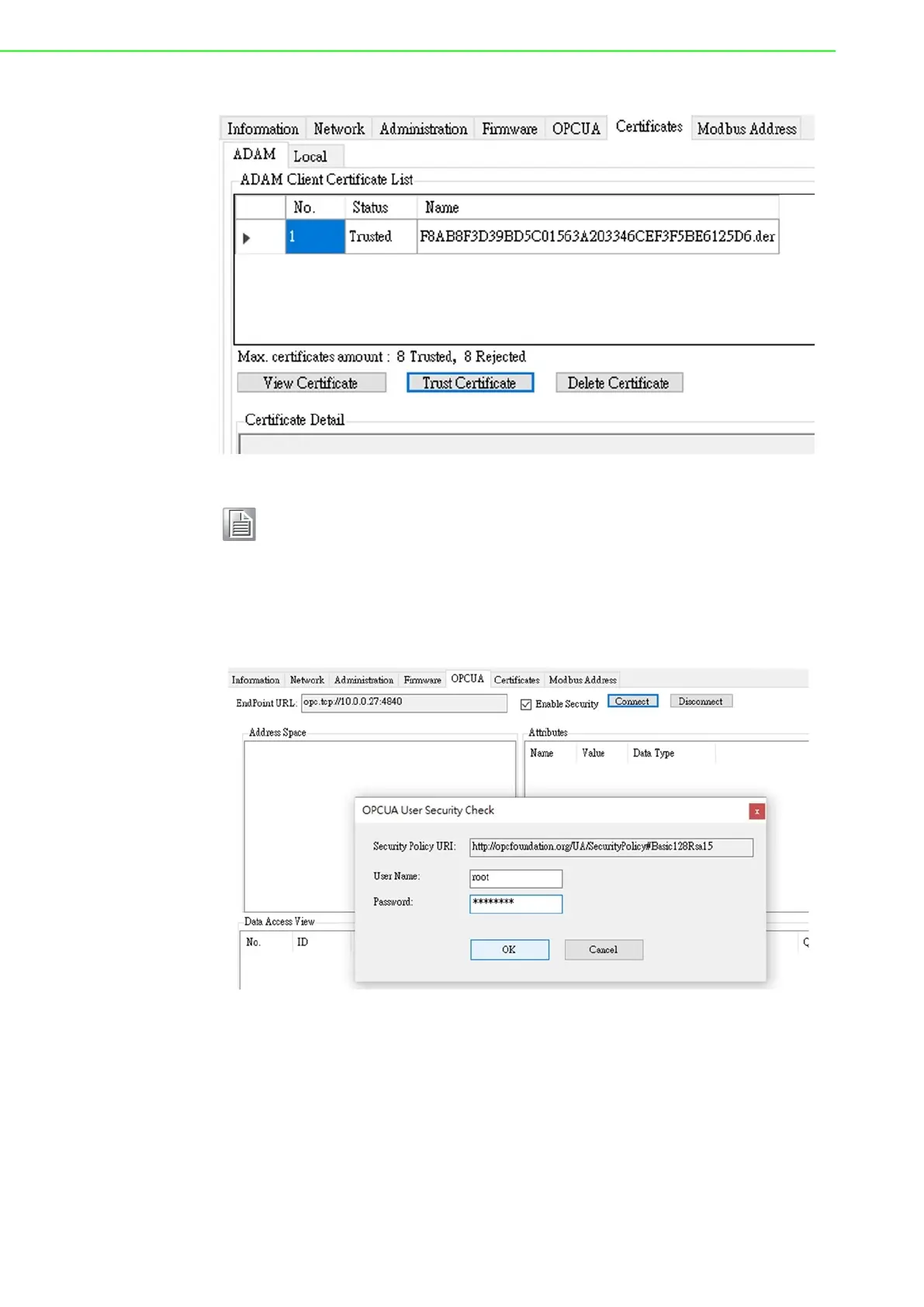

This certificate of status was changed to Trusted.
D. Go to OPC UA tab to connect this session of OPC UA server and client
again.
Click Enable Security and click Connect, the dialogue window shown,
enter root in Username and 00000000 in Password and click OK.
E. The connection of ADAM-6300 modules and Adam/Apax .NET Utility (OPC
UA client) is successful.
OPC UA tab includes Address Space, Attributes, Data Access View.
Address Space: to provide a standard way for the OPC UA Server to rep-
resent objects to the OPC UA Client. Address space is constructed of
nodes and references. Nodes contain attributes and properties, and nodes
are in in the address space.
Note! ADAM-6300 supports 8 trusted certificates. User can click Delete Cer-
tificates and restart ADAM-6300 to remove certificates you don’t
needed.
