63 ADAM-6300 User Manual
Chapter 4 System Configuration
4. Pulse output continue mode
Pulse output Continue (for a pulse train) is to generate a continuous pulse train
or finite number of pulses. Please follow below steps to implement pulse out
function.

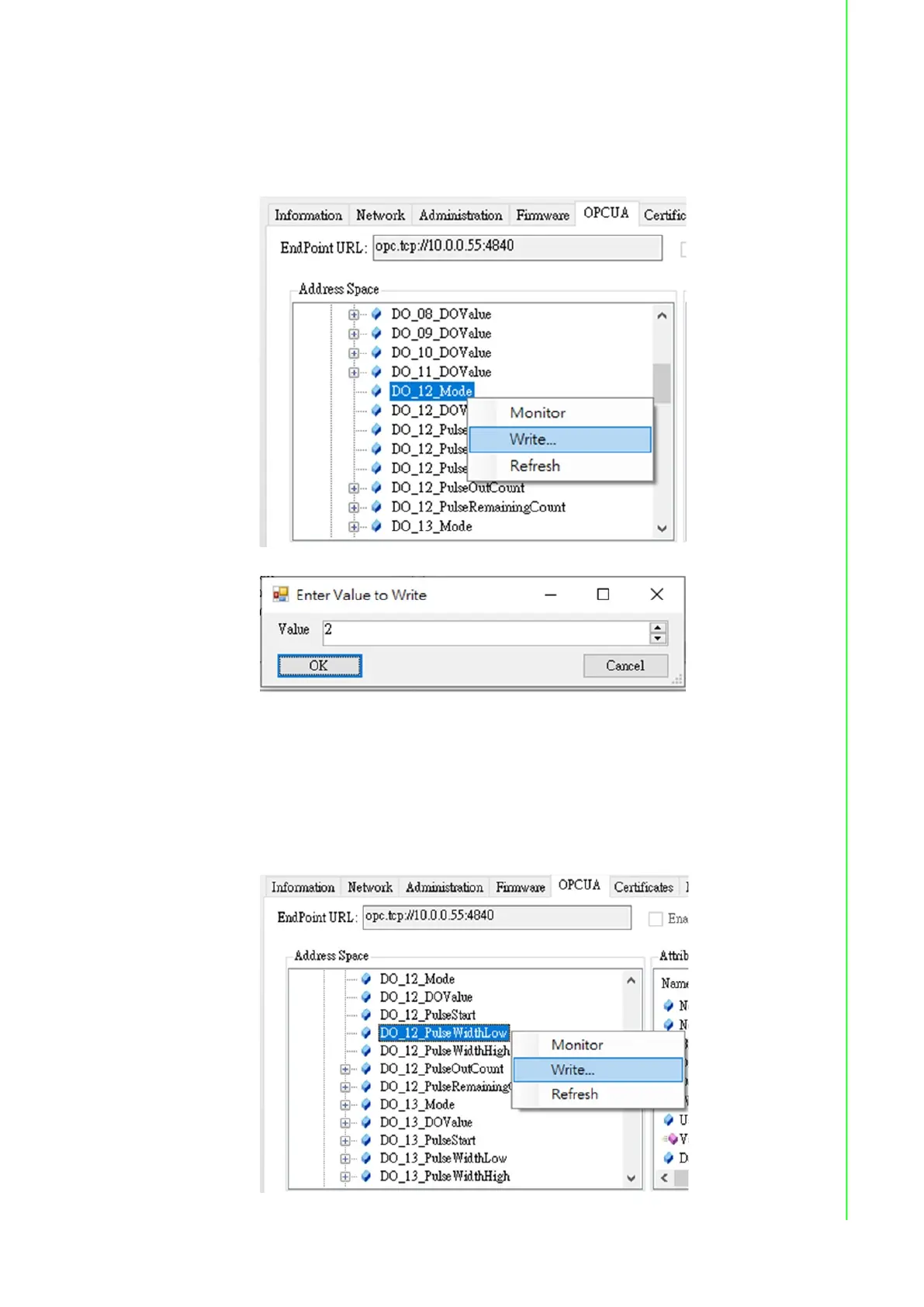

A. Select DO_(channel)_Mode, and right click to select Write and enter 2.
B. Select DO_(Channel)_PulseWidthLow and DO_(Channel)_PulseWidth-
High
You can define the pulse width in the low signal width(right click Write in
selected DO_(Channel)_ PulseWidthLow),and high signal width(right click
Write in selected DO_(Channel)_PulseWidthHigh), to enter 0~65535(The
unit is 0.1ms). The frequency and duty cycle of the pulse output signal will
be calculated automatically.
