ADAM-6300 User Manual 64

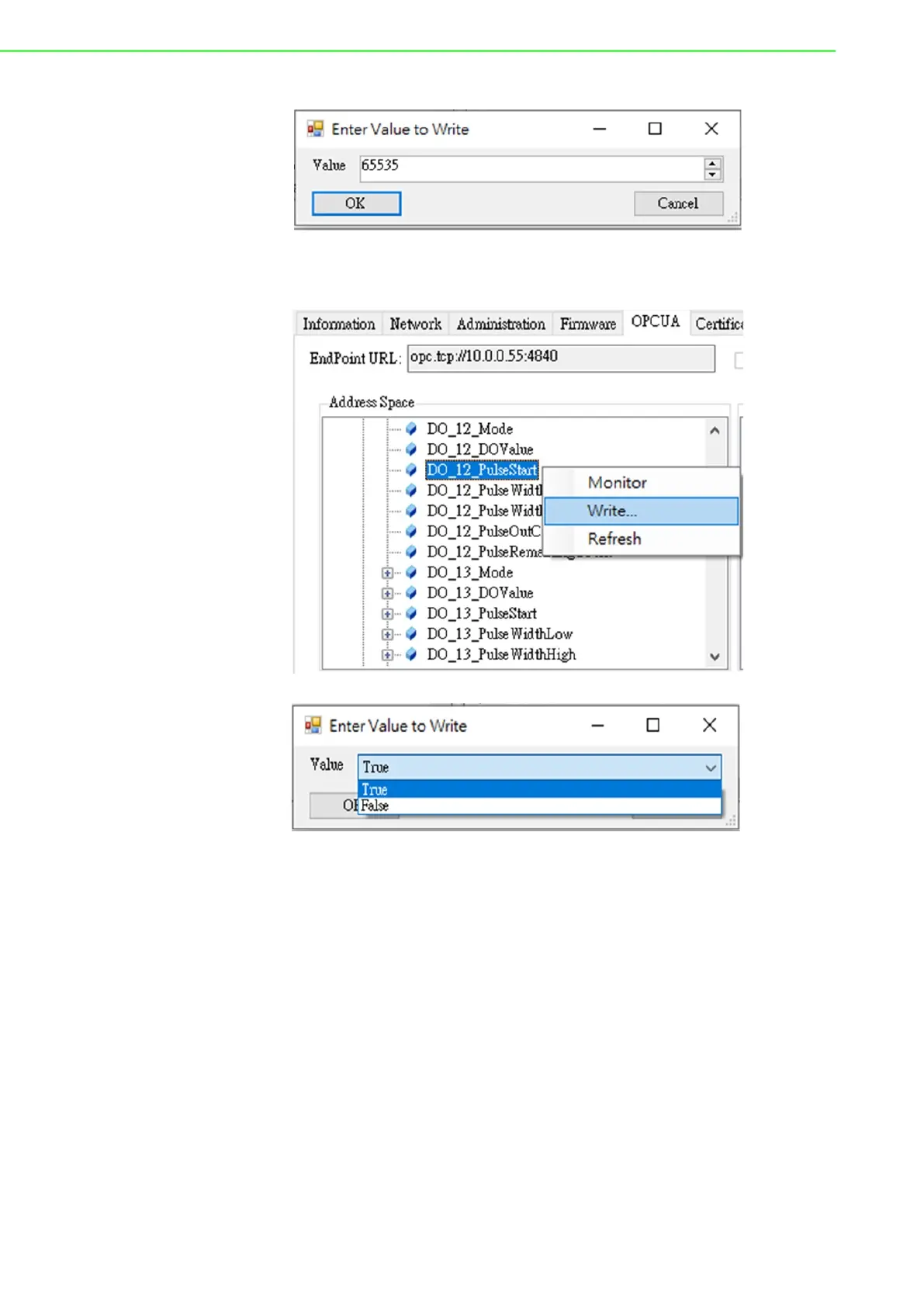

C. Select DO_(Channel)_PulseStart, and right click Write the True to start DO
pulse.
D. After above settings, left click and drag each of nodes of DO_(chan-
nel)_Mode, DO_(Channel)_ PulseWidthLow, DO_(Channel)_Pulse-
WidthHigh, DO_(Channel)_PulseStart to Data Access View, and start to
monitor these nodes.
