Press the "Reset" button to activate the reset function.
2.3.7 PS/2 Keyboard/Mouse Connector
The ARK-3381 provides a PS/2 keyboard/mouse connector. A 6-pin
mini-DIN connector is located on the rear face plate of the ARK-3381.
The ARK-3381 comes with an adapter to convert from the 6-pin mini-
DIN connector to two 6-pin mini-DIN connectors for PS/2 keyboard and
PS/2 mouse connection.

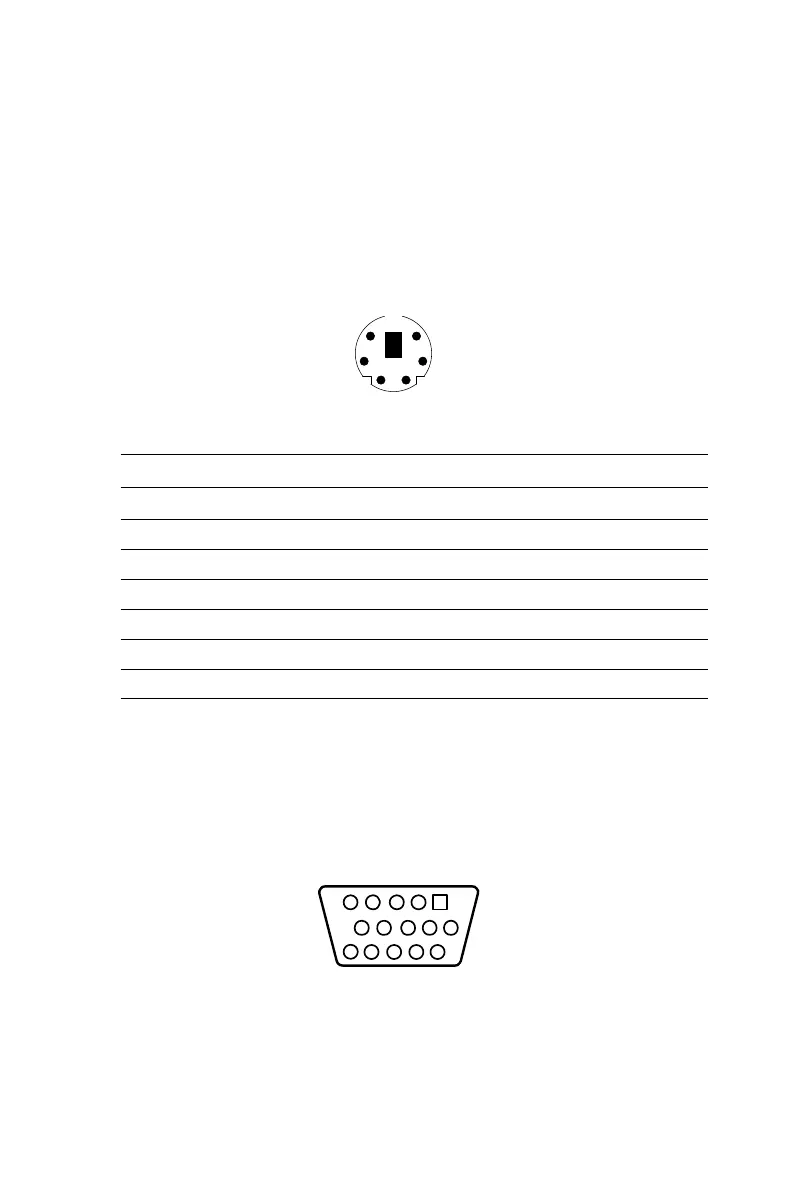

Figure 2.11: PS/2 Connector
2.3.8 VGA Connector
The ARK-3381 provides a high resolution VGA interface by a D-sub 15-
pin connector to support a VGA CRT monitor. It supports VGA and
VESA, up to 1600 x 1200 @85-Hz resolution and up to 32 MB shared
memory.
Table 2.9: PS/2 Keyboard/Mouse connector pin assignments
Pin Signal name
1 PS2_KBDAT
2 PS2_MSDAT
3 GND
4 VCC
5 PS2_KBCLK
6 PS2_MSCLK
5
3
12
4
6
5
15
1
11
10 6
