Advantech ARK-3381 - Figure 2.13:USB Connector

17 Chapter 2

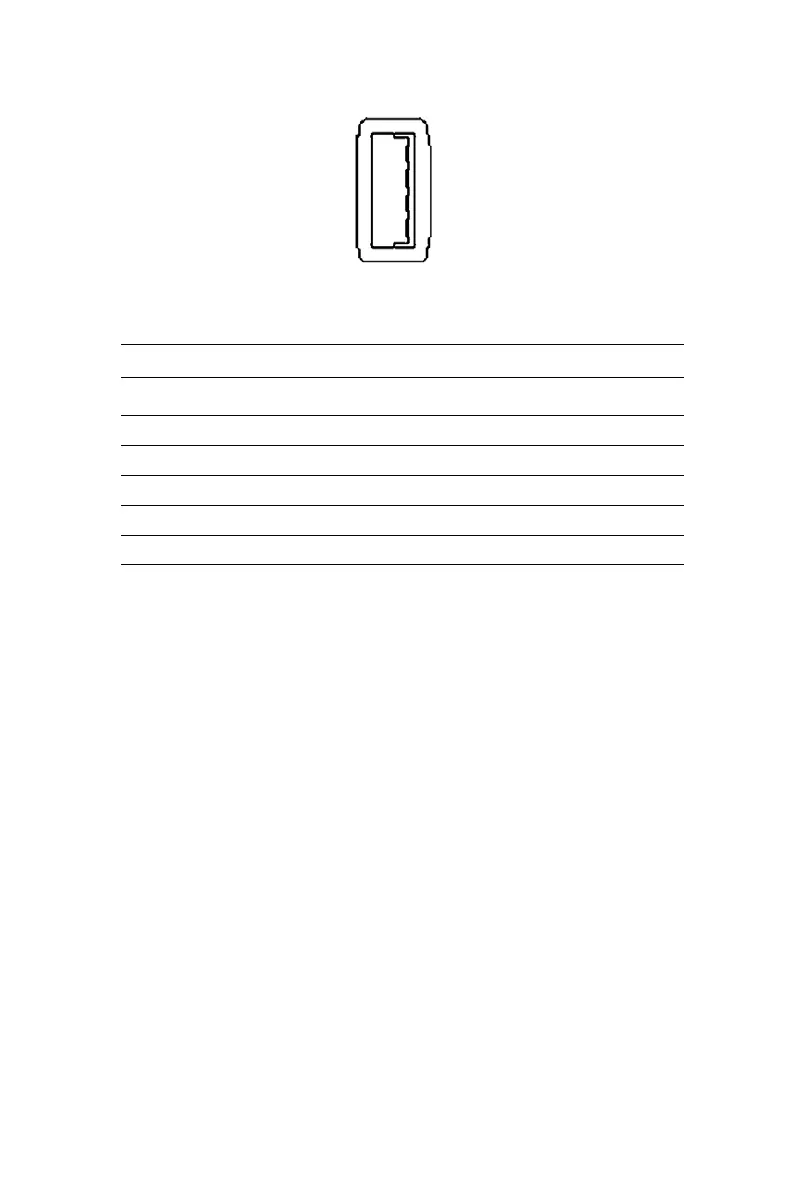

Figure 2.13: USB Connector
Table 2.11: USB1 Connector pin assignments
Pin
Signal Name Pin Signal Name
1VCC2VCC
3 USB_P0- 4 USB_P1-
5 USB_P0+ 6 USB_P1+
7GND8GND
9 GND 10 NC
4
3
2
1
4
3
2
1
