69 Chapter 6

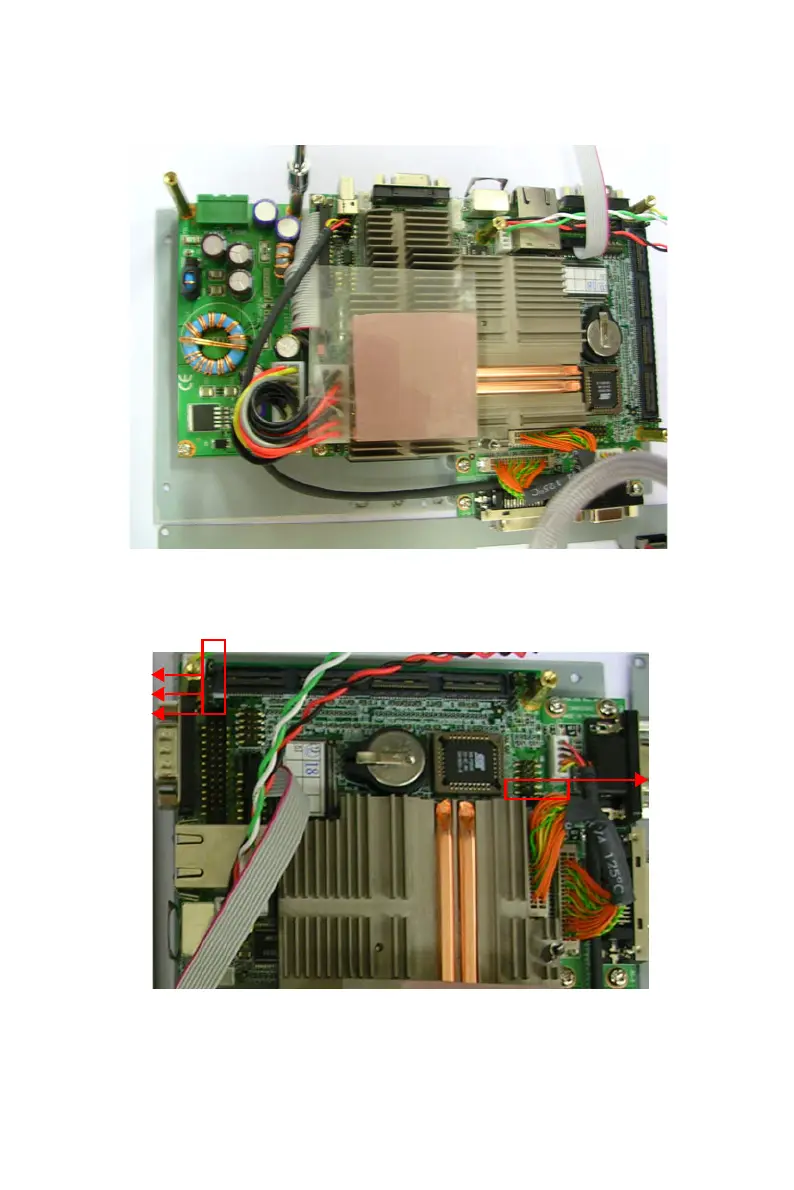

Figure 6.15:
15. The System after MIO-253 Module I/O board removed
Figure 6.16:
16. Jumper Location on PCM-9380/PCM-9386 Motherboard
Figure 6.17:
J6
LCD
power
setting
J3
J4
J5
COM2
setting
