Advantech ARK-3381 - Figure 3.11; Figure 3.12

ARK-3381 User Manual 30

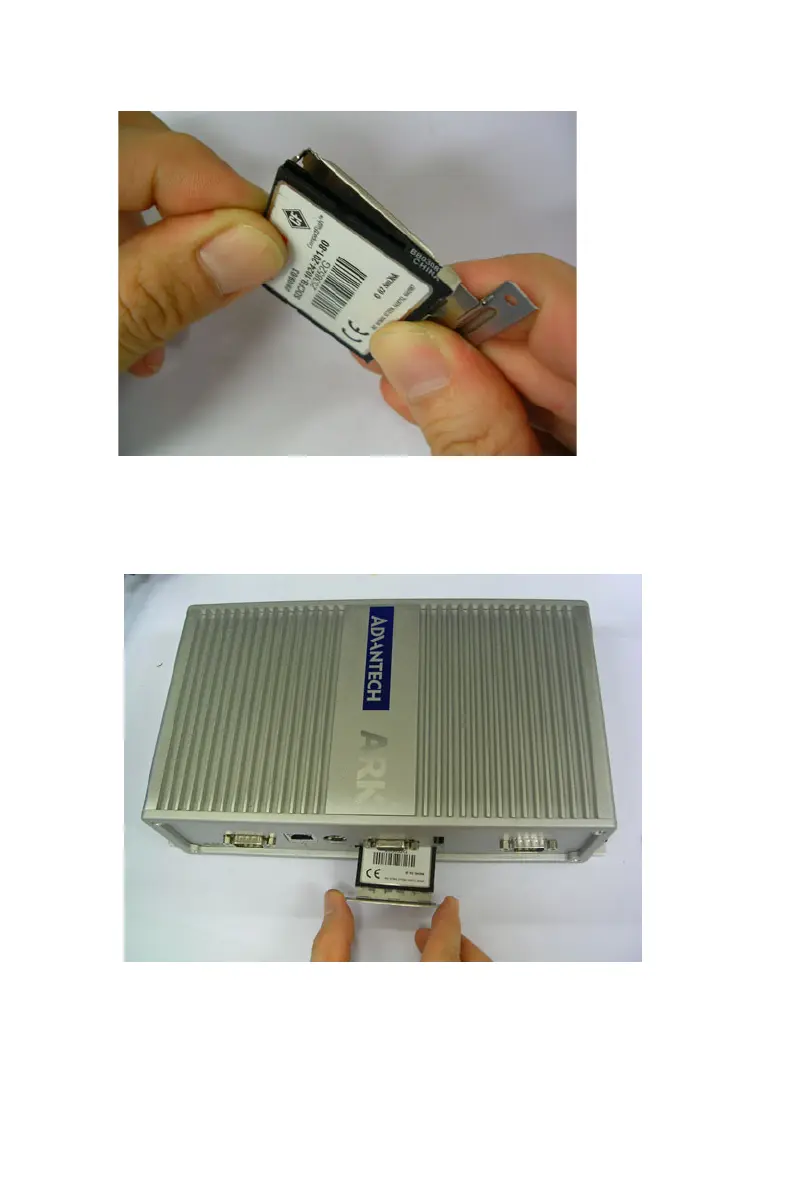

Figure 3.11:
4. Inserting the CF Carrier back and assembling with 2 screws to the CF
door located on rear face plate of the ARK-3381
Figure 3.12:
Note: The Compact Flash socket is allocated as secondary IDE Master.
