Advantech ARK-3381 - Standard CMOS Setup; Figure 4.2:Standard CMOS Features Screen

35 Chapter 4

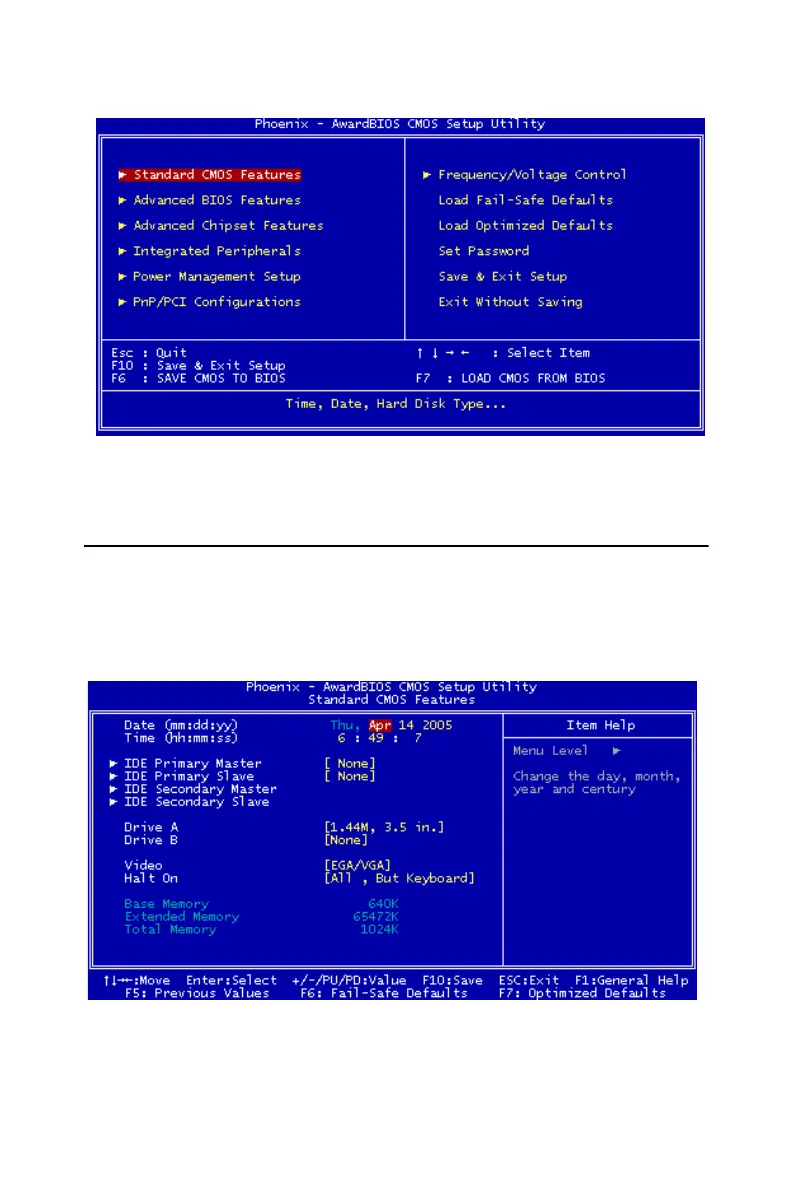

Figure 4.1: Award BIOS Setup initial screen
4.3 Standard CMOS Setup
Choose the "Standard CMOS Features" option from the "Initial Setup
Screen" menu, and the screen below will be displayed. This menu allows
users to configure system components such as date, time, hard disk drive,
floppy drive, display, and memory.
Figure 4.2: Standard CMOS features screen
