ARK-3381 User Manual 64

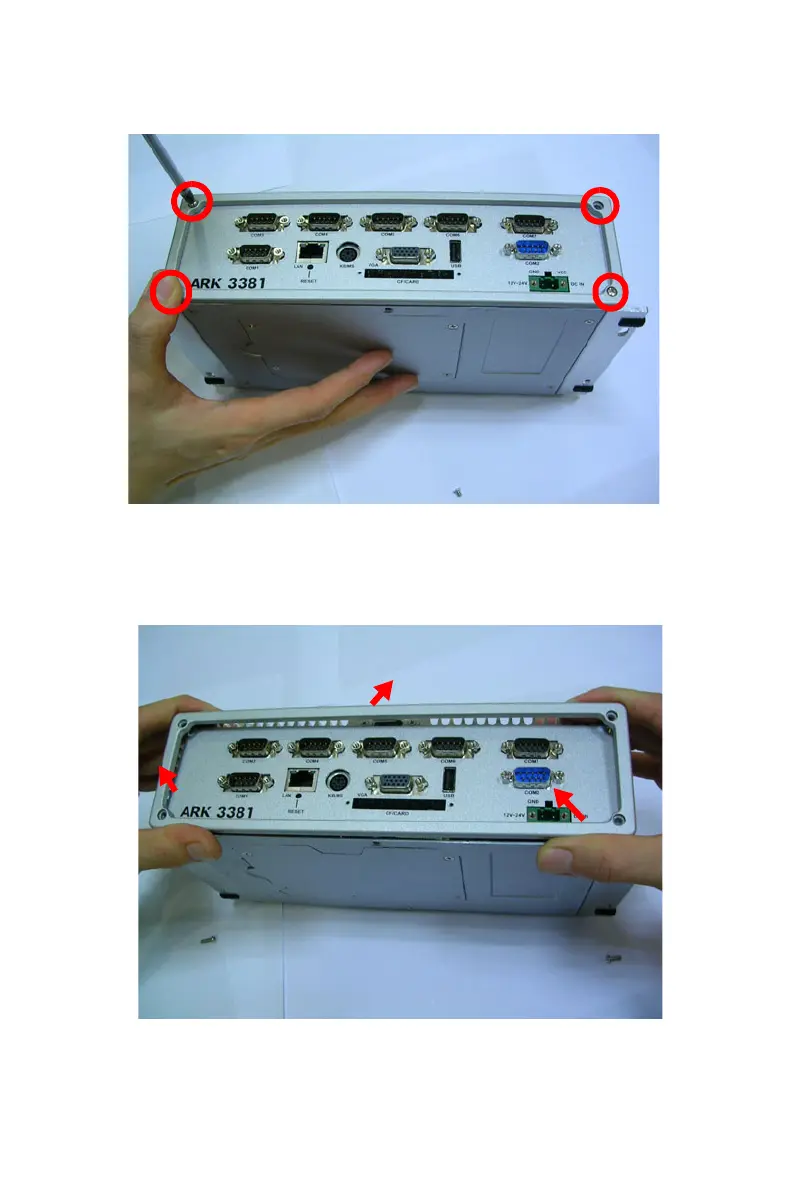

7. Unscrew the 4 screws of the frame bracket on the rear side of system
Figure 6.7:
8. Remove the rear frame bracket by carefully pulling and lifting the
bracket in order to unlock it
Figure 6.8:
