Advantech ARK-3381 - Figure 6.5; Figure 6.6

63 Chapter 6

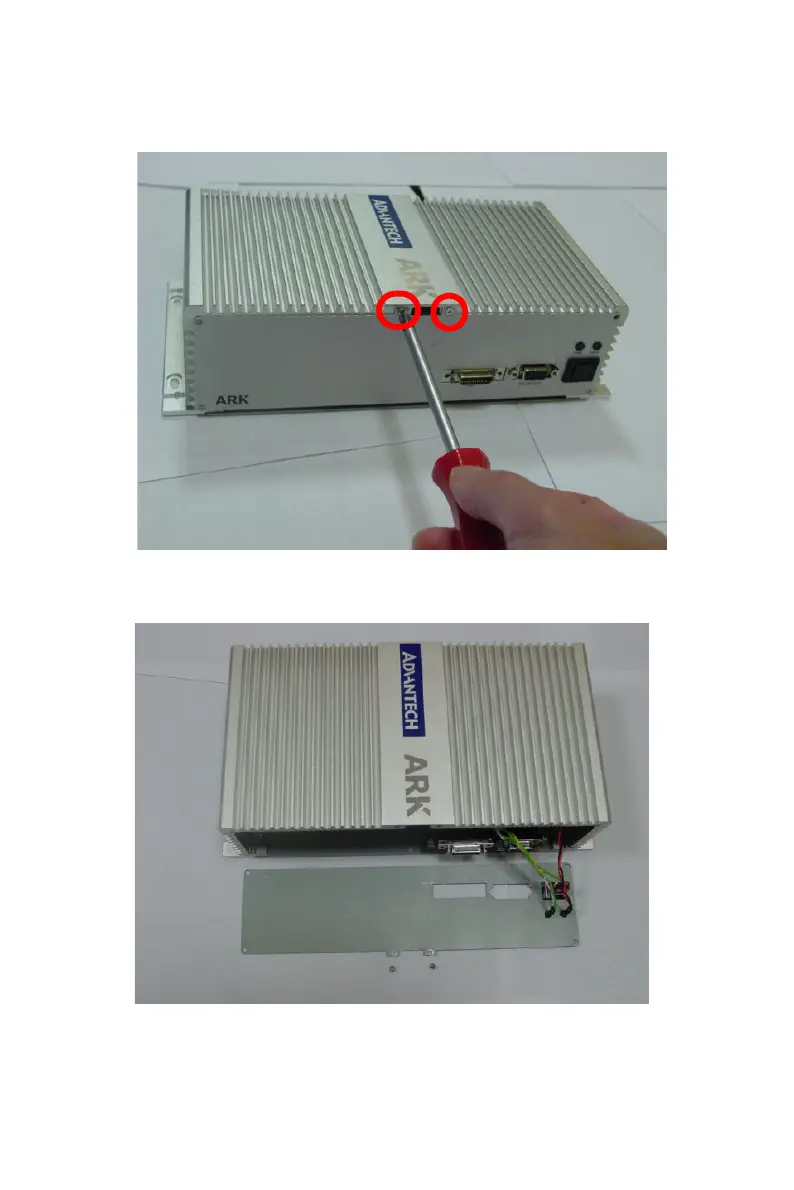

5. Unscrew the 2 screws which are located on the Front Metal Face
plate
Figure 6.5:
6. The Front Metal Face Plate removed
Figure 6.6:
Warning: Do not use too much pressure when removing the front metal
face plate as the power button cable is still attached and could be dam-
aged.
