1.4 Mechanical Specifications
1.4.1 Dimensions
290[11.4] x 90[3.54] x 232[9.13] (Unit: mm [Inch])

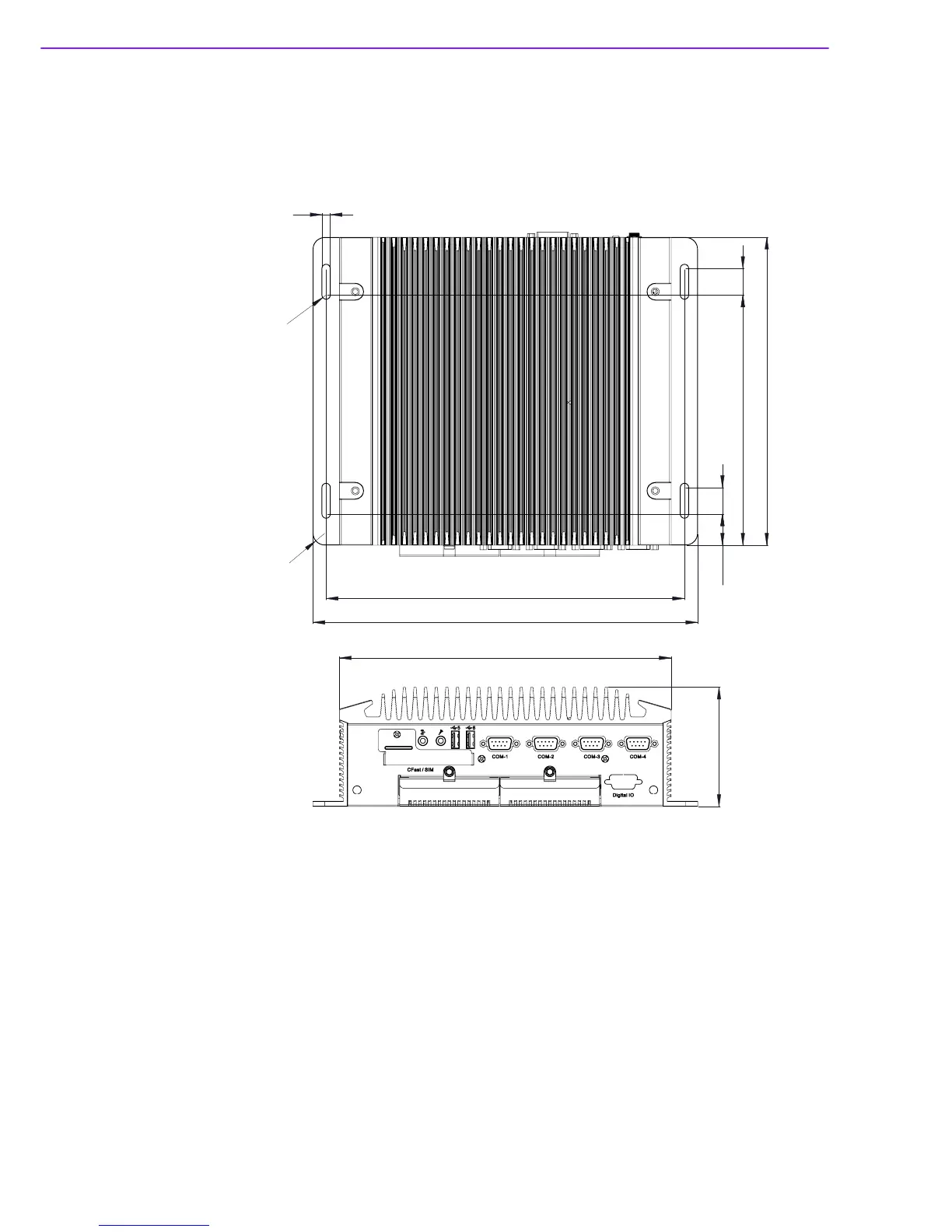

Figure 1.1 ARK-3510 Mechanical dimension drawing
1.4.2 Weight
4.63kg (10.19lb)
1.5 Power Requirement
1.5.1 System Power
 Minimum power input:
– ARK-3510L: DC12V, 7A
1.5.2 RTC Battery
 Lithium 3 V/210 mAH
250
90
232
23.50 20
188.50 20
R9
6
R3
290
270
