11 ARK-3510 User Manual
Chapter 2 Hardware Configuration
2.2.3 Jumper Location

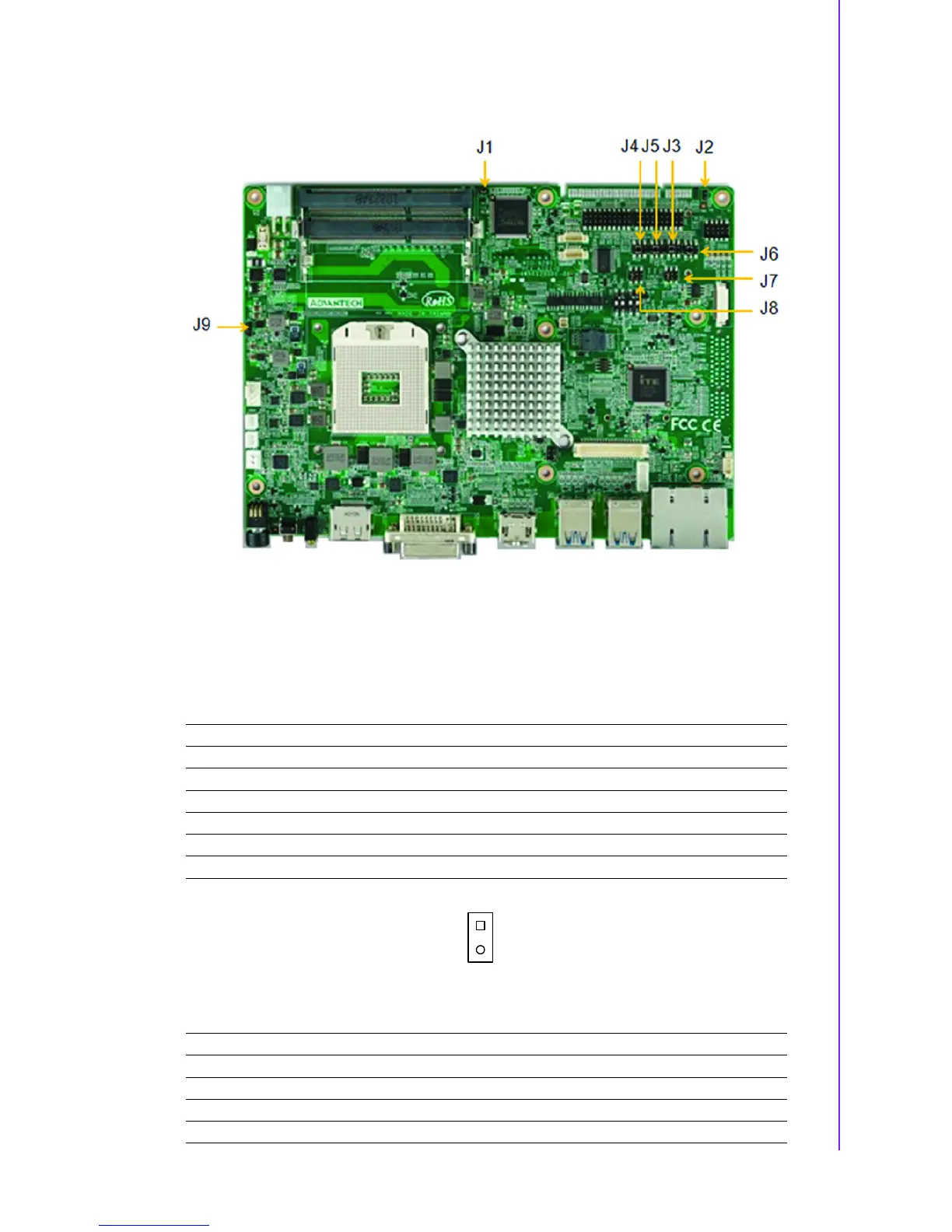

Figure 2.1 Jumper Layout
2.2.4 Jumper Setting
At Mother Board
2.2.4.1 DDR3/DDR3L setting (J1)
2.2.4.2 Auto Power On Setting (J2)
J1 DDR3/DDR3L Setting
Part Number
1653002101
Footprint HD_2x1P_79_D
Description
Setting Function
NC DDR3 Memory module (Default)
(1-2) DDR3L Memory module
1
2
J2 Auto Power On Setting
Part Number
1653002101
Footprint HD_2x1P_79_D
Description
Setting Function
