21 ARK-3510 User Manual
Chapter 2 Hardware Configuration
2.4.3.8 Ethernet Connector (LAN)
ARK-3510 is equipped with up to four Ethernet controllers that are fully compliant
with IEEE 802.3u 10/100/1000 Mbps CSMA/CD standards. The Ethernet port pro-
vides a standard RJ-45 jack connector with LED indicators on the front side to show
its Active/Link status (Green LED) and Speed status (Yellow LED).

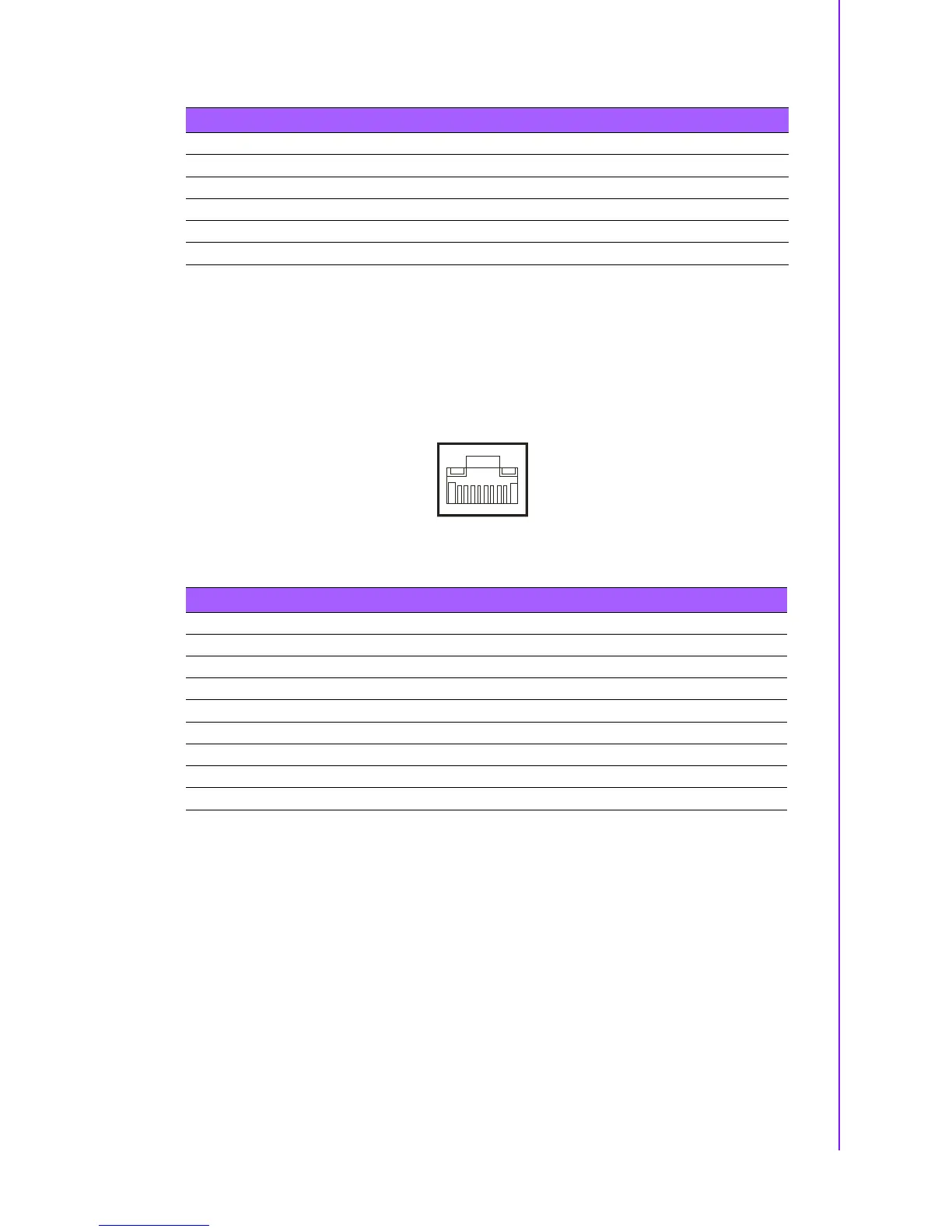

Figure 2.14 Ethernet connector
Table 2.9: USB 3.0 Connector
Pin Signal Name Pin Signal Name
1 +5V 2 USB_data-
3 USB_data+ 4 GND
5 SSRX- 6 SSRX+
7 GND 8 SSTX-
9 SSTX+
Table 2.10: Ethernet Connector Pin Assignments
Pin 10/100/1000BaseT Signal Name
1TX+
2TX-
3RX+
4MDI2+
5MDI2-
6RX-
7MDI3+
8MDI3-
