31 ARK-3510 User Manual
Chapter 3 BIOS Settings

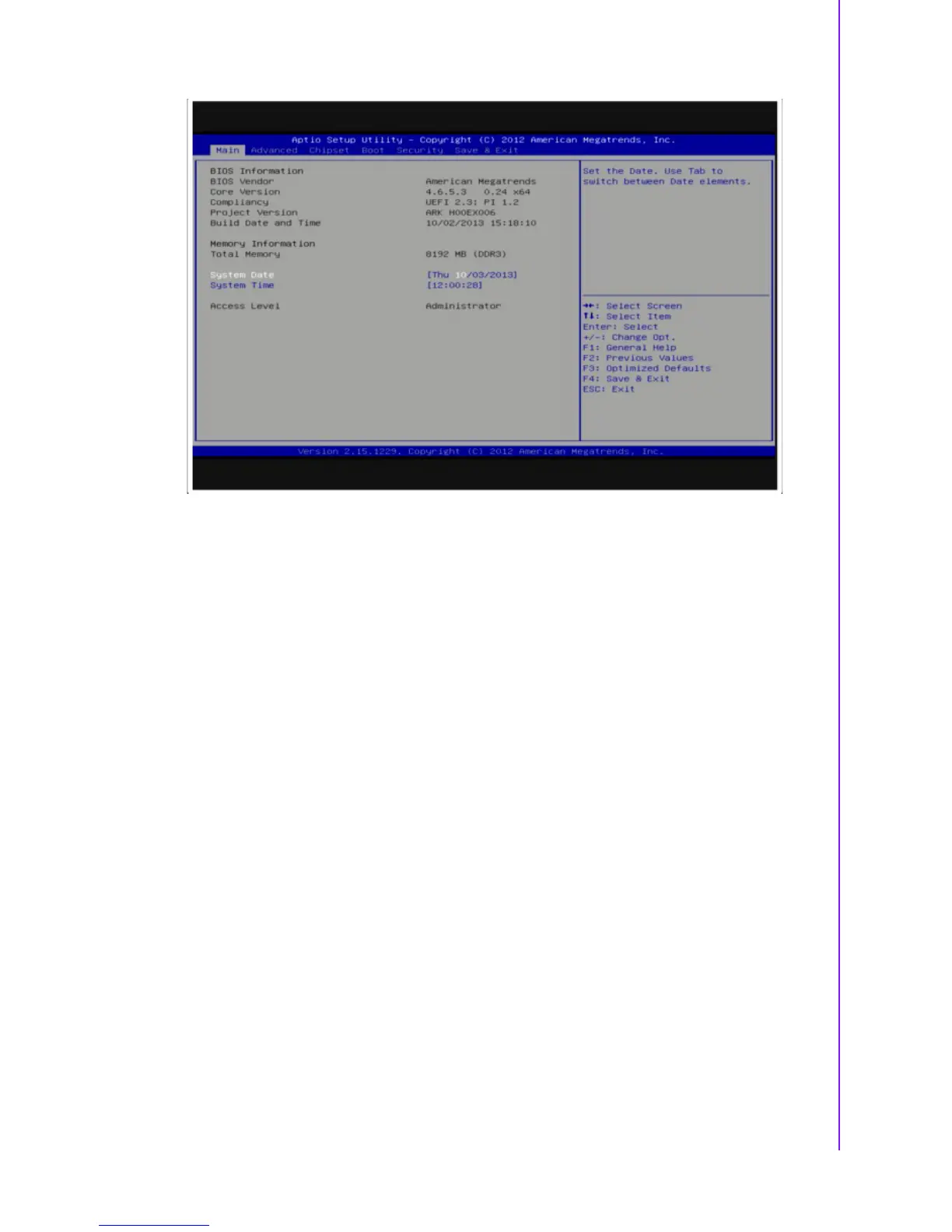

Figure 3.2 Main setup screen
The Main BIOS setup screen has two main frames. The left frame displays all the
options that can be configured. Grayed-out options cannot be configured; options in
blue can. The right frame displays the key legend.
Above the key legend is an area reserved for a text message. When an option is
selected in the left frame, it is highlighted in white. Often a text message will accom-
pany it.
3.2.1 System time / System date
Use this option to change the system time and date. Highlight System Time or Sys-
tem Date using the <Arrow> keys. Enter new values through the keyboard. Press the
<T
ab> key or the <Arrow> keys to move between fields. The date
must be entered in
MM/DD/YY format. The time must be entered in HH:MM:SS format.
3.3 Advanced BIOS Features Setup
Select the Advanced tab from the ARK-3510 setup screen to enter the Advanced
BIOS Setup screen. Users can select any item in the left frame of the screen, such as
CPU Configuration, to go to the sub menu for that item. Users can display an
Advanced BIOS Setup option by highlighting it using the <Arrow> keys. All Advanced
BIOS Setup options are described in this section. The Advanced BIOS Setup
screens are shown below. The sub menus are described on the following pages.
