2.4.3.6 HDMI Connector
An integrated, 19-pin receptacle connector HDMI Type A Interface is provided. The
HDMI link supports resolutions up to 2560x1600@60Hz.

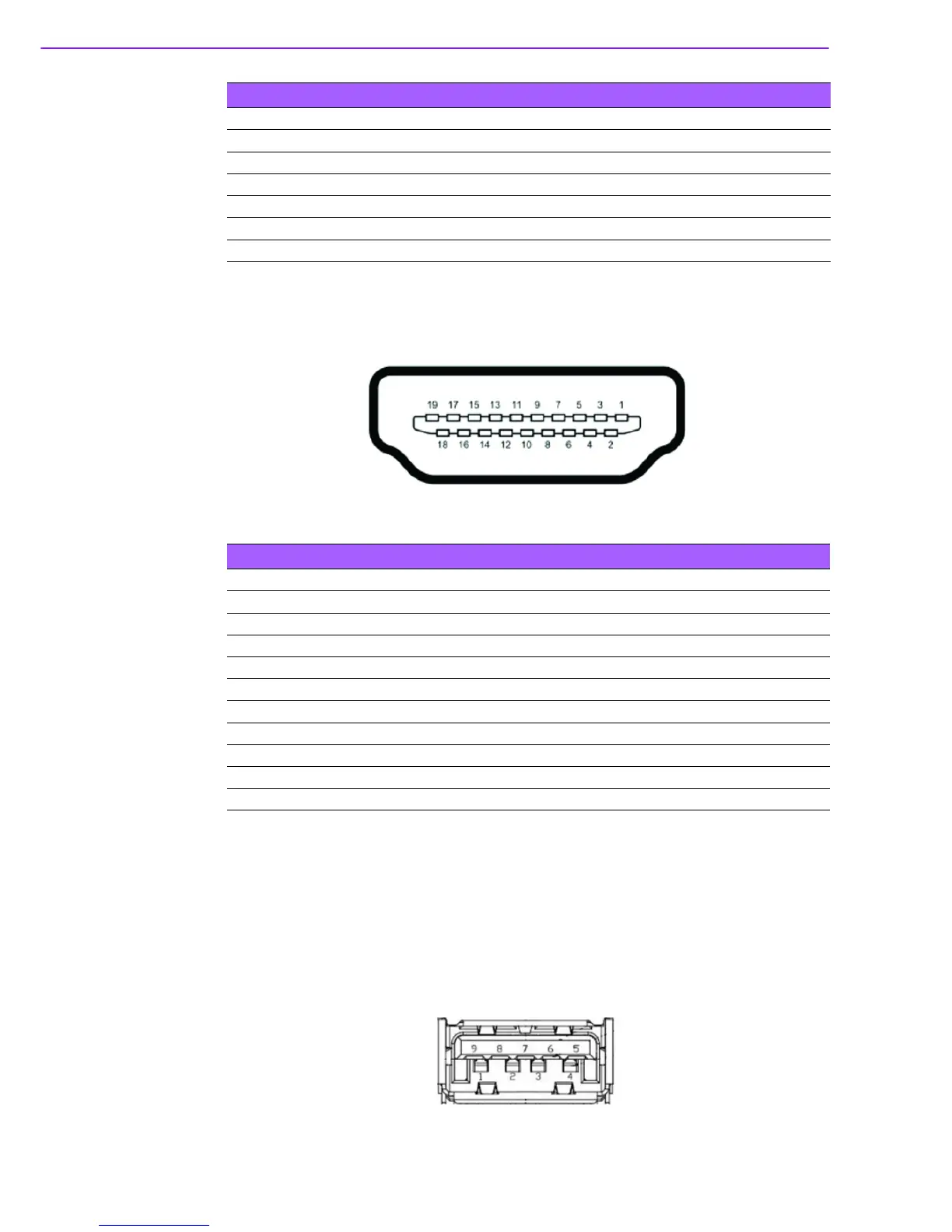

Figure 2.12 HDMI receptacle connector
2.4.3.7 USB3.0 Connector
The USB port USB port 1, 2, 3, 4 of ARK-3510 supports USB 3.0 interface, which
gives complete Plug & Play and hot swapping for up to 127 external devices. The
USB interface complies with USB UHCI, Rev. 3.0 compliant. Please refer to Table.
2.7 for its pin assignments. USB 3.0 connectors contain legacy pins to interface to
USB 2.0 devices, and a new set of pins for USB 3.0 connectivity (both sets reside in
the same connector).
Figure 2.13 USB3.0 Connector
17 TMDS Data 0- 18 TMDS Data 0+
19 TMDS Data 0/5 shield 20 TMDS Data 5-
21 TMDS Data 5+ 22 TMDS clock shield
23 TMDS clock+ 24 TMDS clock-
C1 Analog red C2 Analog green
C3 Analog blue C4 Analog horizontal sync
C5 Analog GND
Table 2.7: DVI-I Connector pin assignments
Table 2.8: HDMI Connector pin assignments
Pin Signal Name Pin Signal Name
1 TMDS Data 2+ 2 TMDS Data 2 shield
3 TMDS Data 2- 4 TMDS Data 1+
5 TMDS Data 1 shield 6 TMDS Data 1-
7 TMDS Data 0+ 8 TMDS Data 0 shield
9 TMDS Data 0- 10 TMDS clock+
11 TMDS clock shield 12 TMDS ckock-
13 CEC 14 Reserved
15 SCL 16 SDA
17 DDC/CEC Ground 18 +5V
19 Hot Plug Detect
