ARK-3510 User Manual 22
2.5 Installation

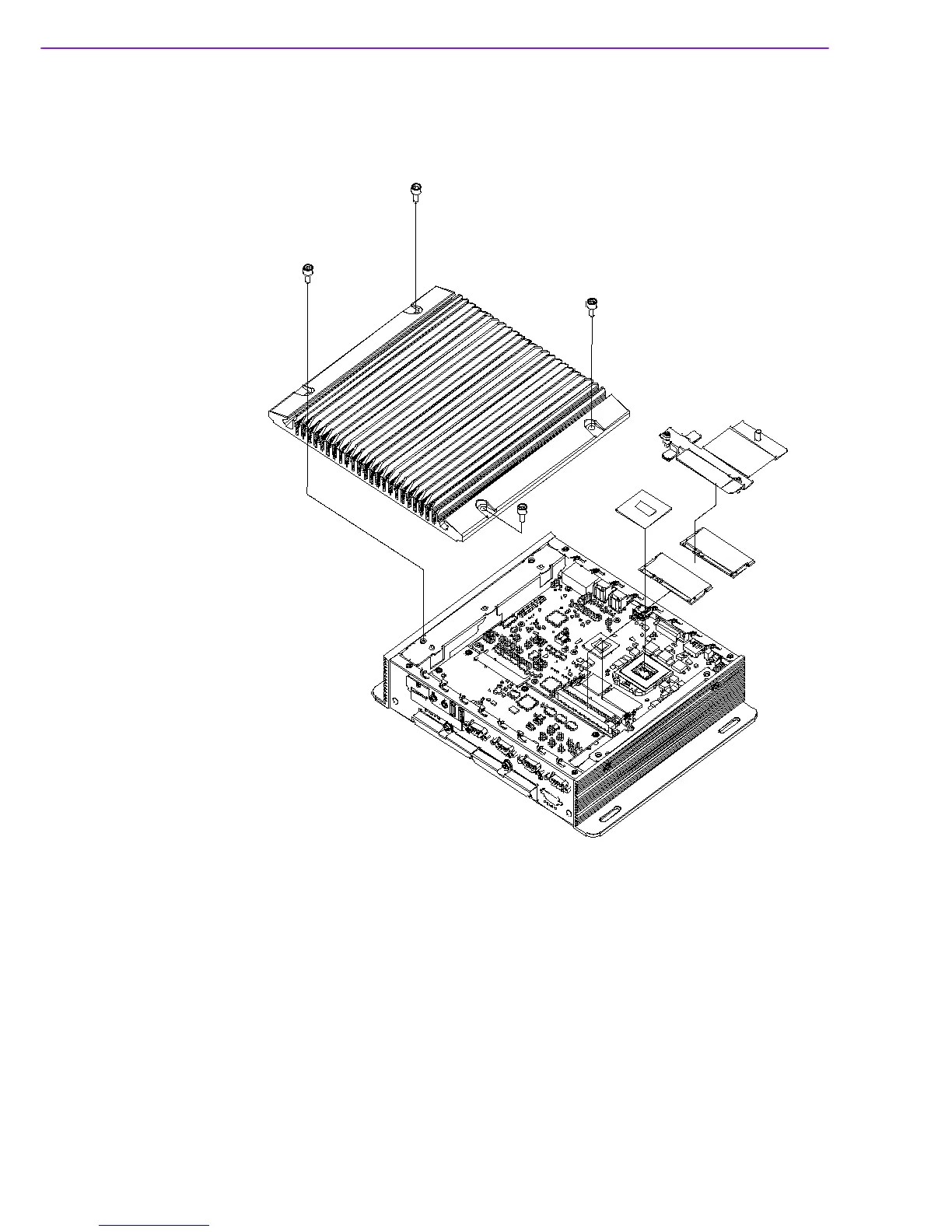

2.5.1 CPU / Memory Installation
1. Unscrew the 4 screws on the top cover, and remove the top cover
2. Install the CPU on the socket, and screw to the lock on the socket
3. Unscrew 2 screws on memory bracket
4. Install the memory into the system.
5. Screw the 2 screws back onto the memory bracket with the M/B
6. Recover the top chassis
