ARK-3510 User Manual 16
2.4 Connectors
2.4.1 ARK-3510 External I/O Location
ARK-3510L:

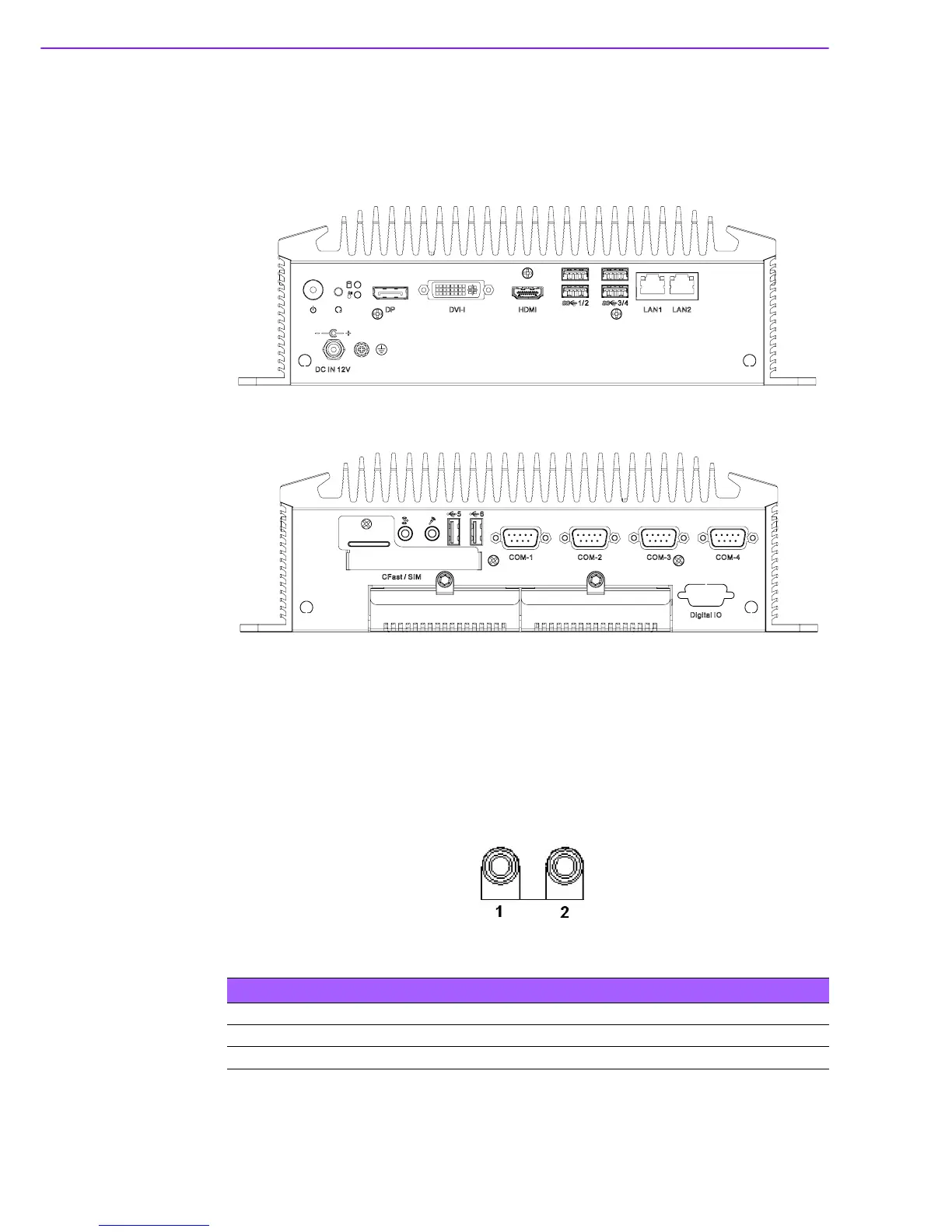

Figure 2.2 ARK-3510L Front IO connectors drawing
Figure 2.3 ARK-3510L Rear IO connectors drawing
2.4.2 ARK-3510 Front I/O connectors
2.4.2.1 Audio Connector
ARK-3510 offers stereo audio ports by three phone jack connectors of Line_Out,
Line_In, Mic_In. The audio chip is controlled by ALC892, and it’s compliant with Aza-
lea standard.
Figure 2.4 Audio connector
2.4.2.2 USB2.0 Connector
ARK-3510 provides up to four USB2.0 interface connectors, which give complete
Plug & Play and hot swapping for up to 127 external devices. The USB interface
Table 2.3: Audio Connector Pin Assignments
Pin Audio Signal Name
1 Line out
2 Mic in
