Advantech ARK-3510 - IT8760 Super IO Configuration

39 ARK-3510 User Manual
Chapter 3 BIOS Settings
3.3.8 IT8760 Super IO Configuration

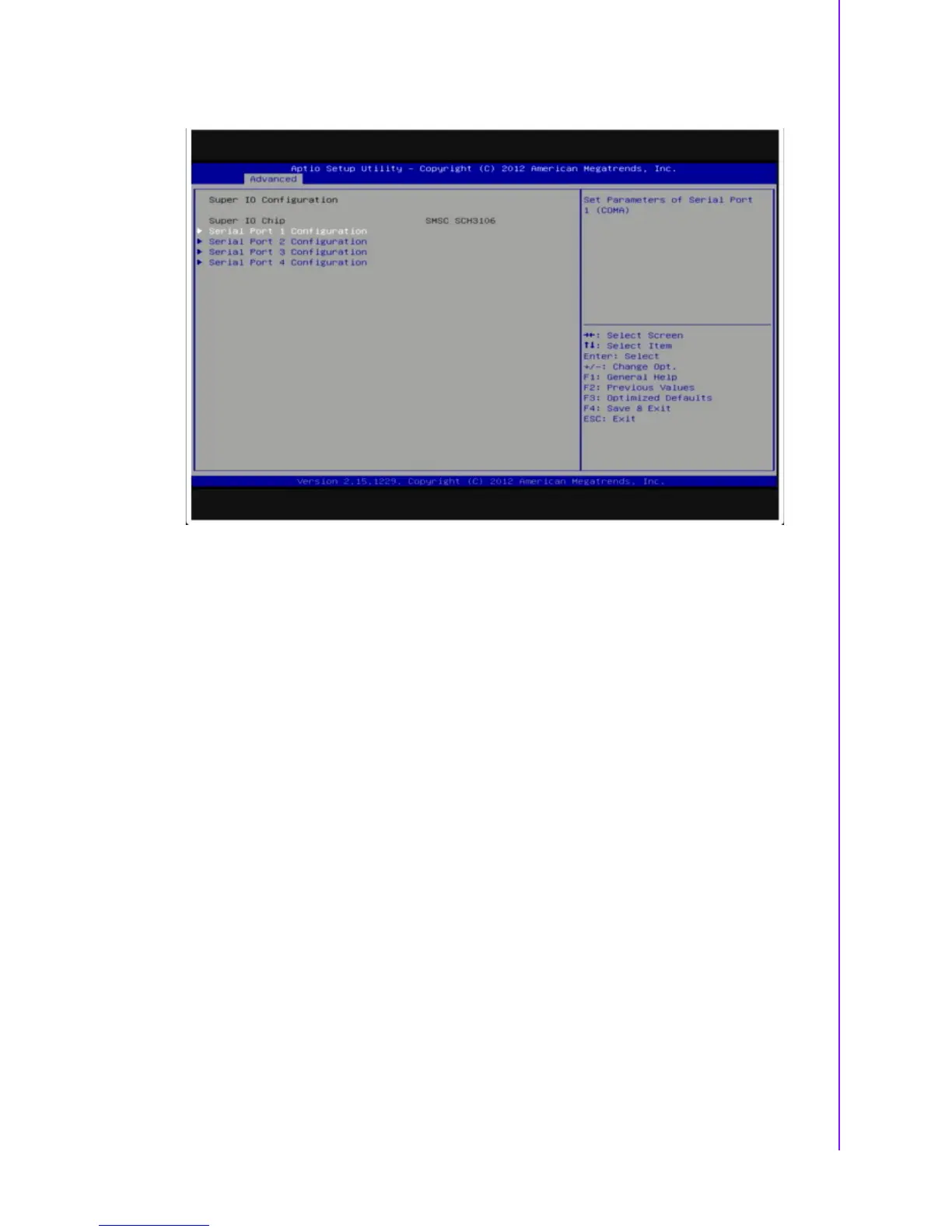

Figure 3.13 Super IO Configuration
3.3.8.1 Serial Port 1 Configuration
Serial Port
This item allows users to enable or disable COM1.
Change Settings
This item allows users to select super I/O device.
3.3.8.2 Serial Port 2 Configuration
Serial Port
This item allows users to enable or disable COM2.
Change Settings
This item allows users to select super I/O device.
3.3.8.3 Serial Port 3 Configuration
Serial Port
This item allows users to enable or disable COM3.
Change Settings
This item allows users to select super I/O device.
Device Mode
This item allows users to select Serial Port mode.
Serial interface
This item allows users to select RS-232/422/485. Default by RS-232.
3.3.8.4 Serial Port 4 Configuration
Serial Port
This item allows users to enable or disable COM4.
