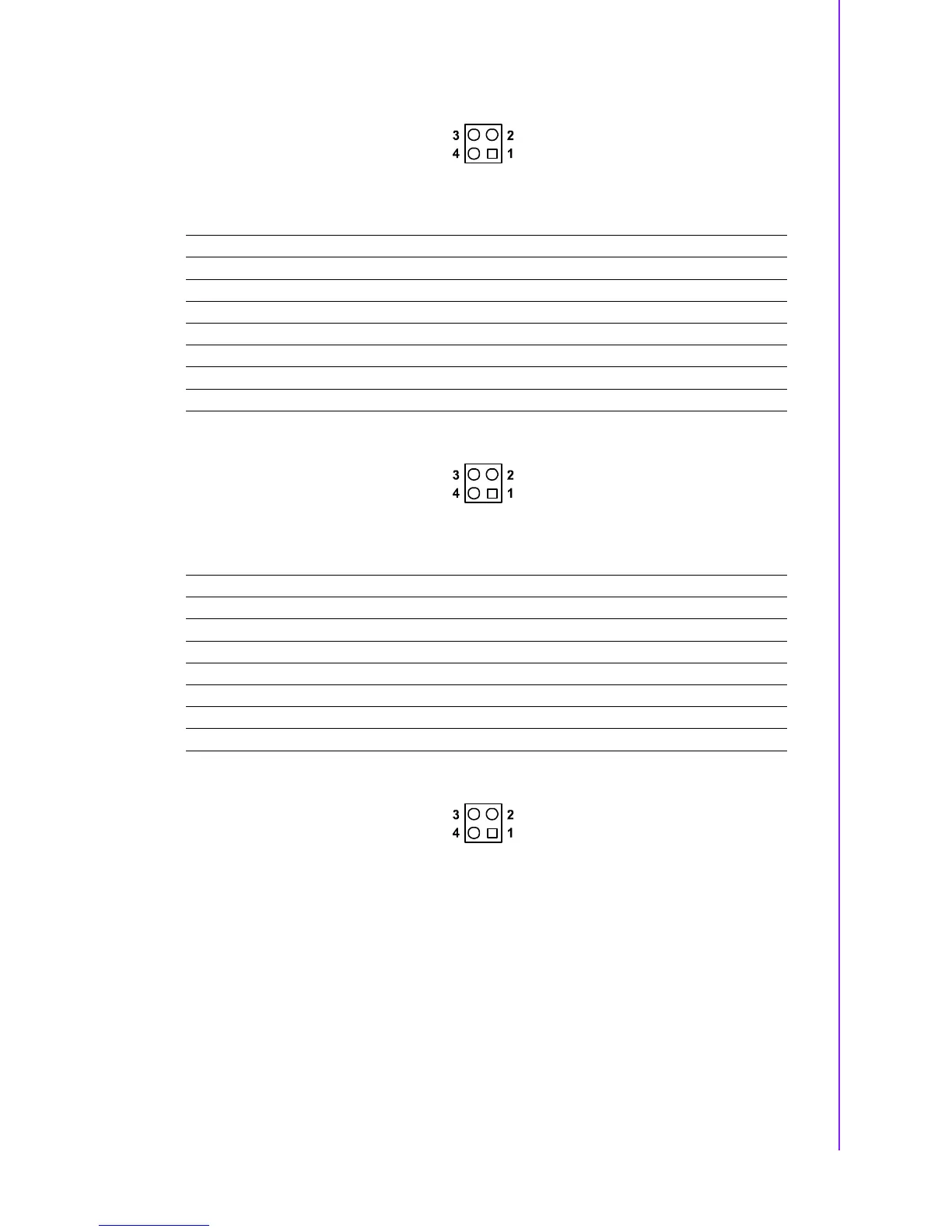

15 ARK-3510 User Manual
Chapter 2 Hardware Configuration
2.3.1.3 PCIE/mSATA Selection
2.3.1.4 PCIE/mSATA Selection
SW2
SW5 PCIE/mSATA Selection
Part Number
1600003089-01
Footprint SW_2x2P_100_198x378
Description
Setting Function
(OFF)1*(ON)3 AUTO-DETECTION (Default)
(OFF)1*(OFF)2 PCIE CARD
(OFF)2*(ON)4 mSATA
SW5
SW6 PCIE/mSATA Selection
Part Number
1600003089-01
Footprint SW_2x2P_100_198x378
Description
Setting Function
(OFF)1*(ON)3 AUTO-DETECTION (Default)
(OFF)1*(OFF)2 PCIE CARD
(OFF)2*(ON)4 mSATA
SW6
