EKI-1361/EKI-1362 User Manual 16
2.3 Connecting Hardware
Next, we will explain how to find a proper location for your EKI series, and then
explain how to connect to the network, hook up the power cable, and connect to the
EKI series serial port.
2.3.1 Choosing the Location
Due to its versatility and innovative design, EKI serial device server can be:
 Fixed to a panel/wall mount
 Fixed to a DIN-rail
2.3.1.1 Panel/Wall Mounting
The EKI-1361/EKI-1362 can be attached to a wall using the included metal brackets.
Each bracket comes with 3 screws; and then you can install the device firmly via the
components, please see the figure as below.

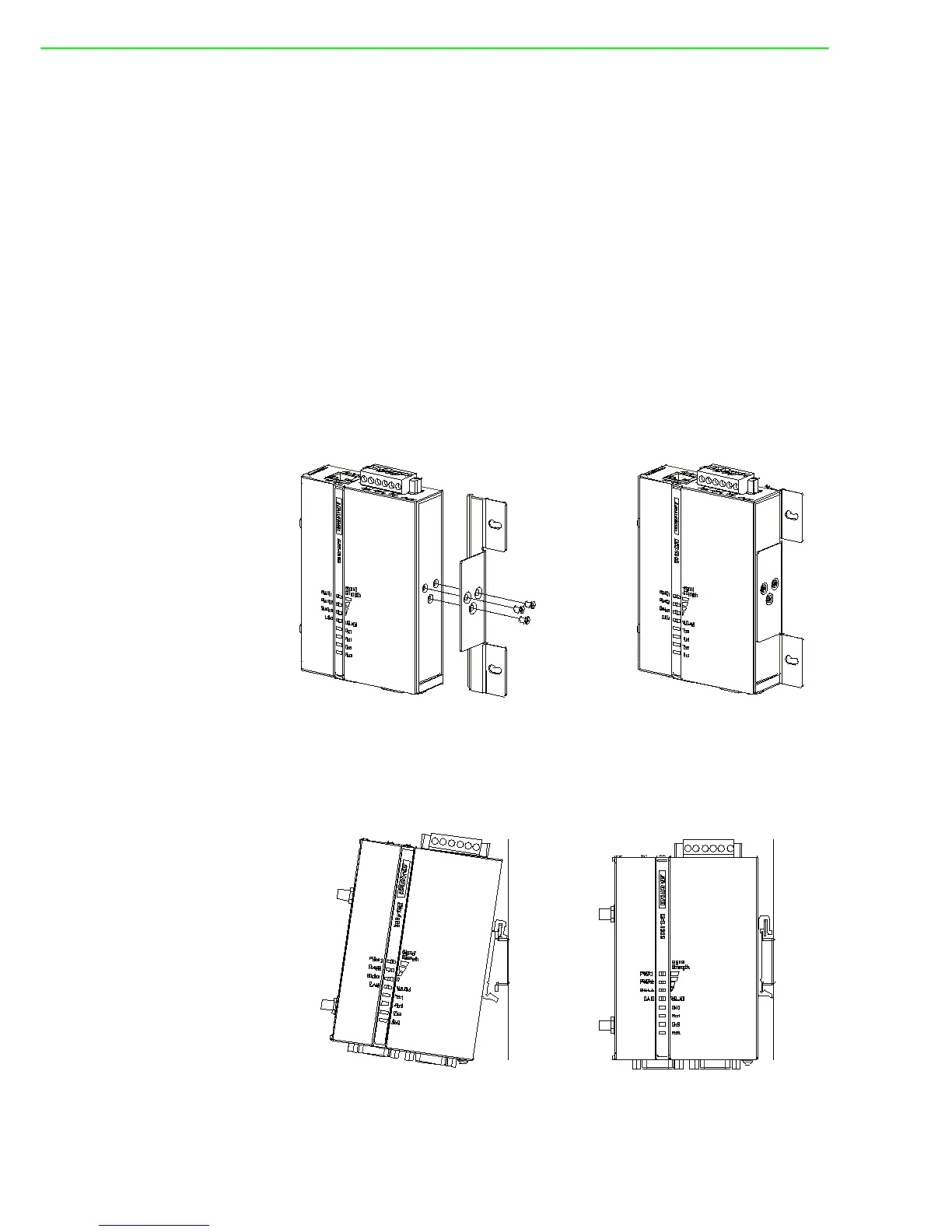

Figure 2.11 Combine the Metal Mounting Kit
2.3.1.2 DIN Rail Mounting
You can mount the EKI-152X series on a standard DIN-rail. Please screw the DIN-rail
kit on the serial device server first.
Figure 2.12 DIN-rail Step 2
