17 EKI-1361/EKI-1362 User Manual
Chapter 2 Getting Started
2.3.2 Wireless Connection
The EKI-1361/EKI-1362 operates in the 802.11b/g/n WLAN environment, which is
created by an access point working with 802.11b/g/n protocols. When configuring
EKI-1361/EKI-1362 in unknown status, user can use the Ethernet port and Configu-
ration Utility to locate device easily. After found device in the Configuration Utility,
user can configure the Ethernet and Wireless IP address to access web interface for
advanced settings including serial port operation mode and wireless configurations.
More detail description can be found in next chapters.
You can check the signal access strength with the WLAN signal strength LED indica-
tors. Adjust the antenna of the EKI serial device server to optimize communication
quality.
2.3.3 Network Connection
EKI-1361/EKI-1362 has a RJ-45 Ethernet port that supports 10 Mbps Ethernet, or
100 Mbps Fast Ethernet, and half or full duplex operation. EKI-1361/EKI-1362 can be
connected to other hubs or switches through a twisted-pair straight through the cable
or a crossover cable up to 100m long. When use EKI-1361/EKI-1362 for first time,
user can connect to device with Configuration Utility. Or you can set the host's ip
address in the same domain with device. Then user can use popular browser to
connect web interface EKI-1361/EKI-1362 built-in for advanced configuration.
2.3.4 Power Connection
The EKI-1361/EKI-1362 supports dual 12 to 48 VDC power inputs and power-fail
relay output.

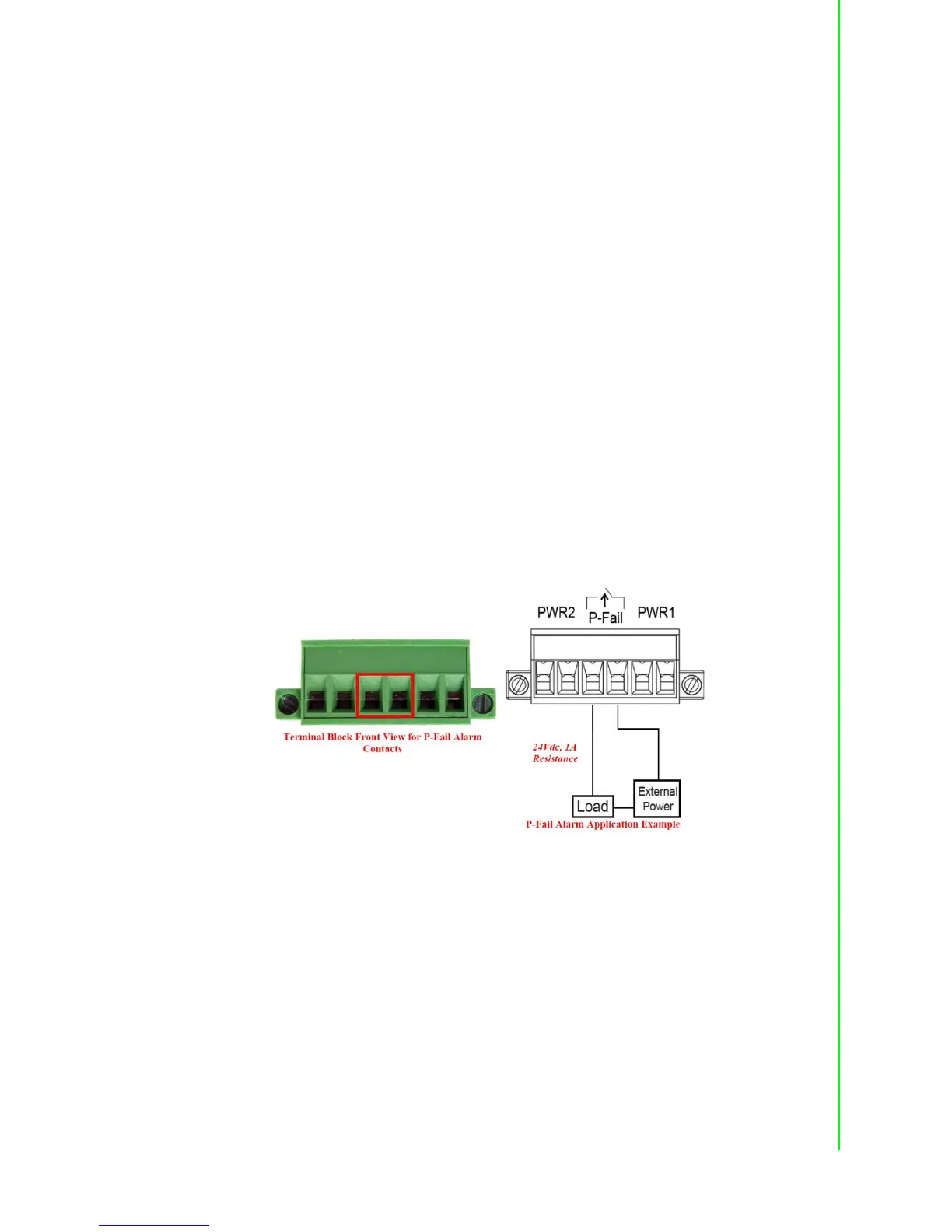

Figure 2.13 Power Connector
You can connect an alarm indicator, buzzer or other signaling equipment through the
relay output. The relay opens if power input 1 or 2 fails (“Open” means if you connect
relay output with an LED, the light would be off).
