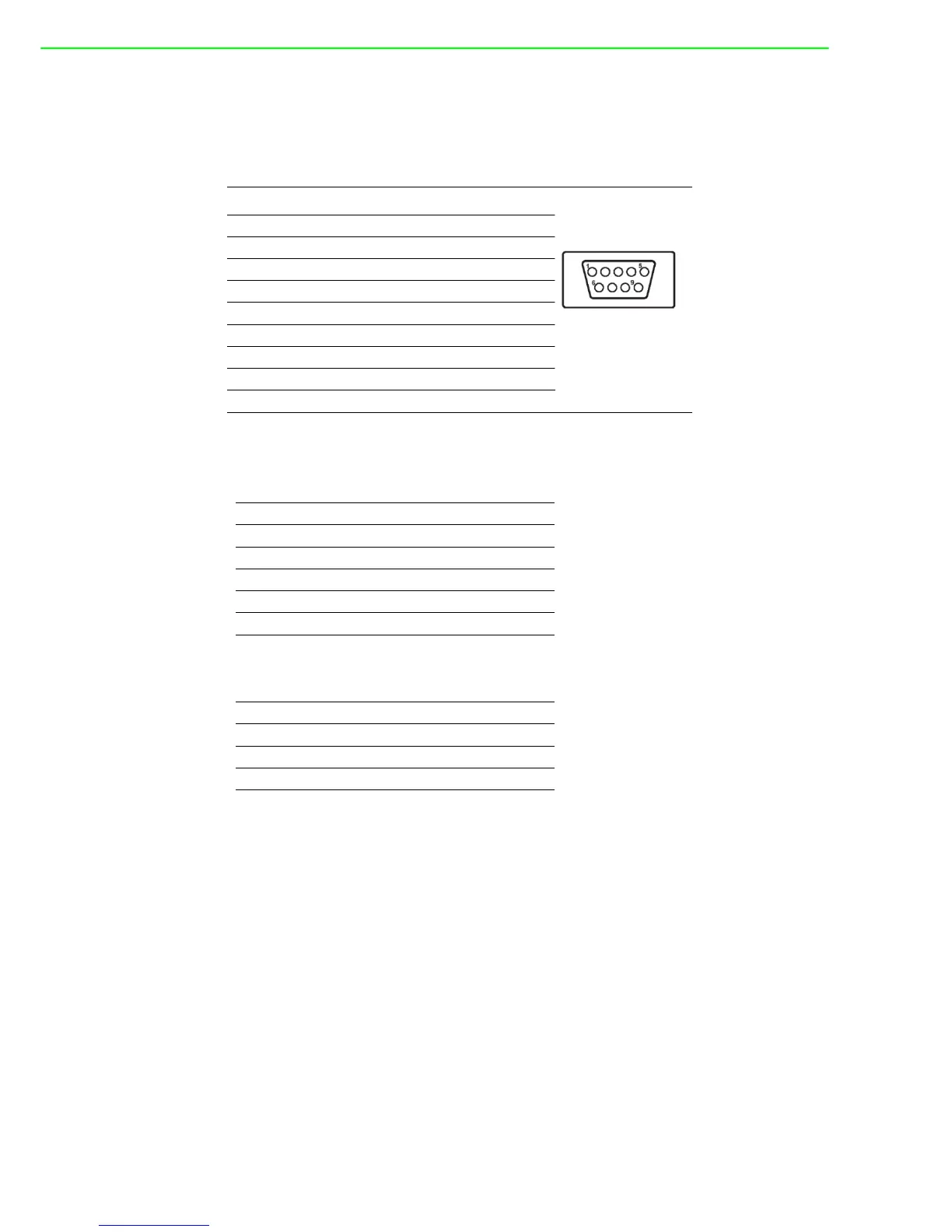

EKI-1361/EKI-1362 User Manual 80

A.1 Pin Assignments

A.1.1 RS-232 Pin Assignments

A.1.2 RS-422/485 Pin Assignments

A.1.2.1 1. RS-422

A.1.2.2 2. RS-485

Pin # Description

1DCD

2Rx

3Tx

4DTR

5GND

6DSR

7RTS

8CTS

9RI

Pin #. Description

1Tx-

4Tx+

5GND

7Rx+

9Rx-

Pin # Description

1Data-

4Data+

5GND
