PCA-6773 User’s Manual 100

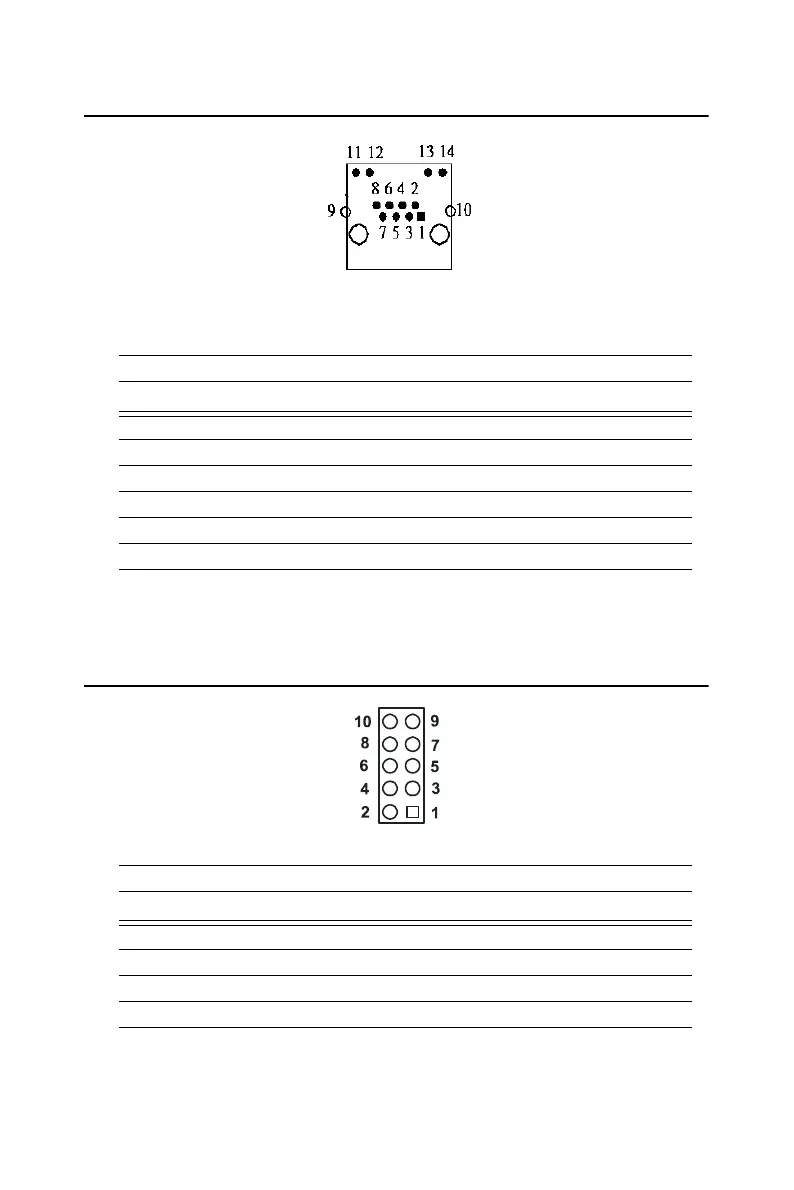

C.5 LAN,RJ45 connector(CN18)

C.6 USB1, 2 connector(CN25)

Table C.5: LAN,RJ45 connector(CN18)

Pin Signal Pin Signal

1TX+ 8GND

2TX- 9GND

3RX+ 10GND

4 GND 11 VCC_LAN(TX/RX)

5 GND 12 ACTLED

6 RX- 13 VCC_LAN

7 GND 14 LILEN(LINK10/100M)

Table C.6: USB 1, 2 connector(CN25)

Pin Signal Pin Signal

1+5V 2+5V

3 USB0- 4 USB1-

5 USB0+ 6 USB1+

7 USB GND 8 USB GND

9 GND 10 NC
