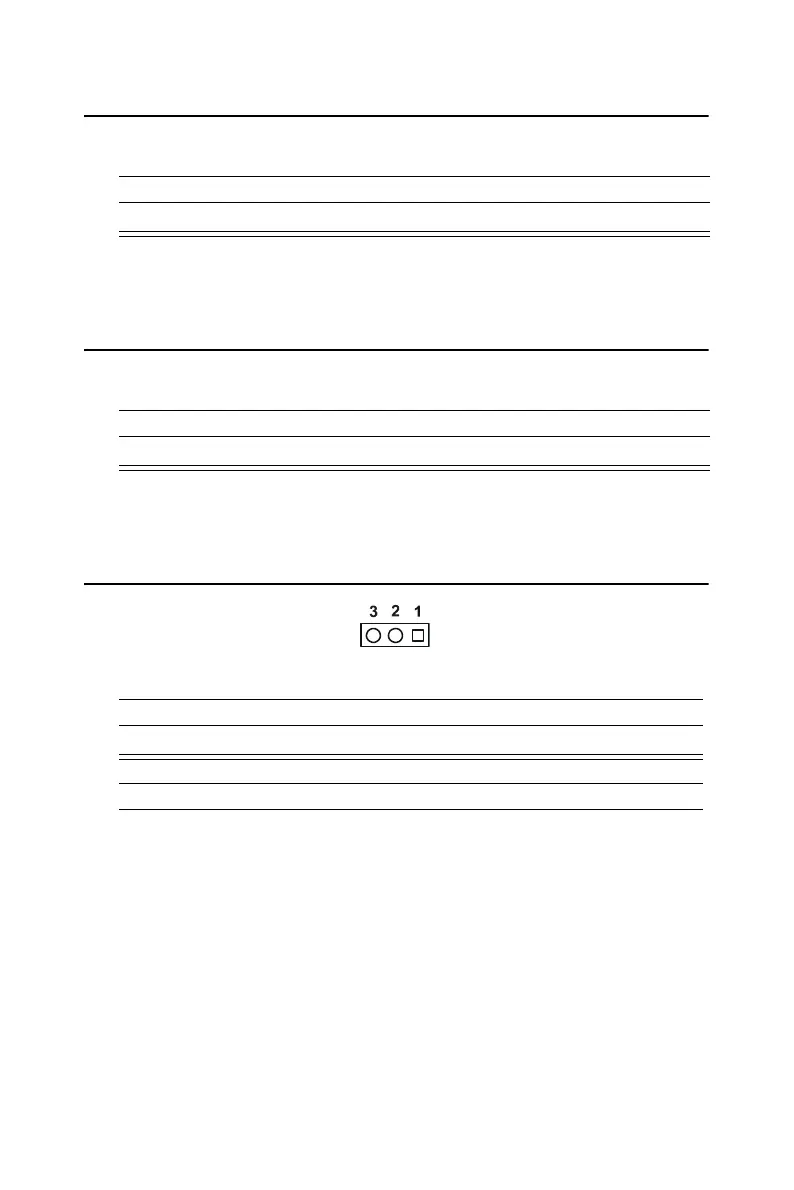

111 Appx. C

C.24 PWR_SW connector(CN1)

C.25 Reset connector(CN2)

C.26 CPU Fan connector (FAN1)

Table C.24: PWR_SW connector(CN1)

Pin Signal Pin Signal

1 Power ON/OFF signal 2 GND

Table C.25: Reset connector(CN2)

Pin Signal Pin Signal

1 Reset signal 2 GND

Table C.26: CPU Fan connector(FAN1)

Pin Signal

1 Speed Monitor

2+5V

3GND
