PCA-6773 User’s Manual 104

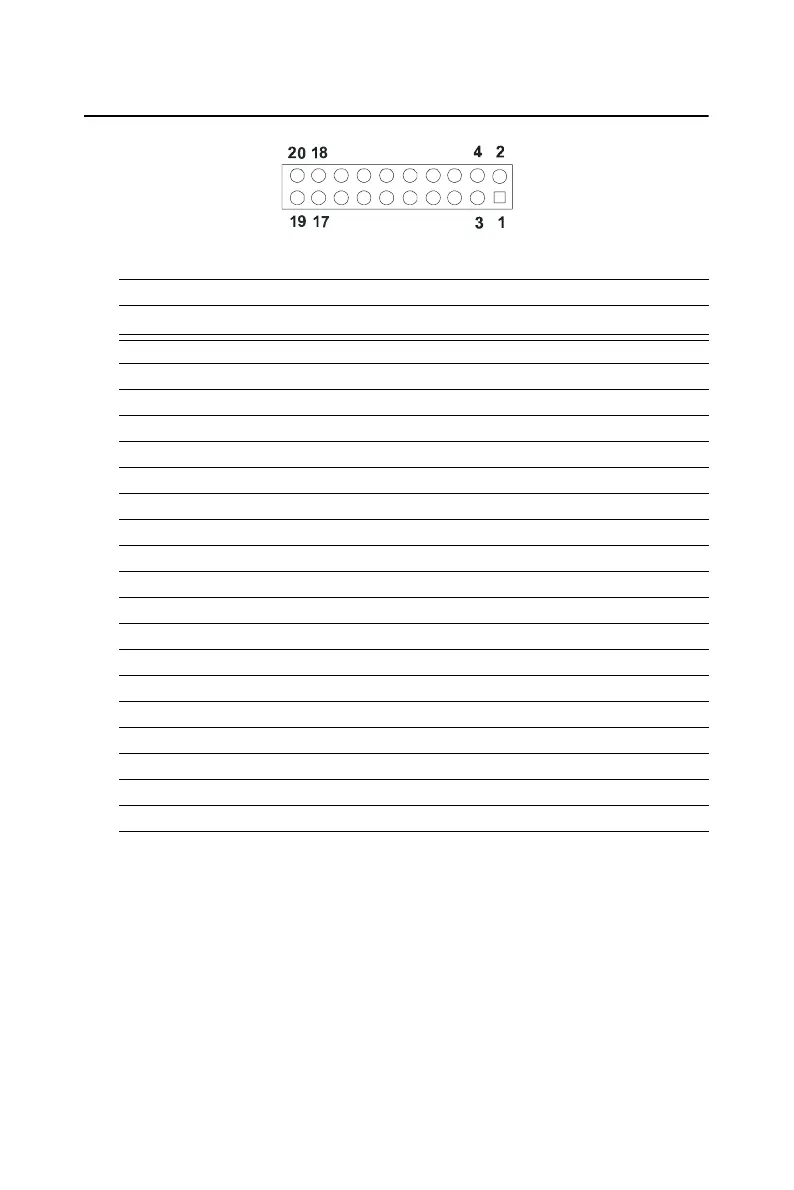

C.13 LVDS connector(CN10)

Table C.13: LVDS connector(CN10)

Pin Signal

1GND

2GND

3 Y0P signal output

4 Z0P signal output

5 Y0M signal output

6 Z0M signal output

7 Y1P signal output

8 Z1P signal output

9 Y1M signal output

10 Z1M signal output

11 Y2P signal output

12 Z2P signal output

13 Y2M signal output

14 Z2M signal output

15 YCP signal output

16 ZCP signal output

17 YCM signal output

18 ZCM signal output

19 +3.3V output

20 +3.3V output
