PCA-6773 User’s Manual 108

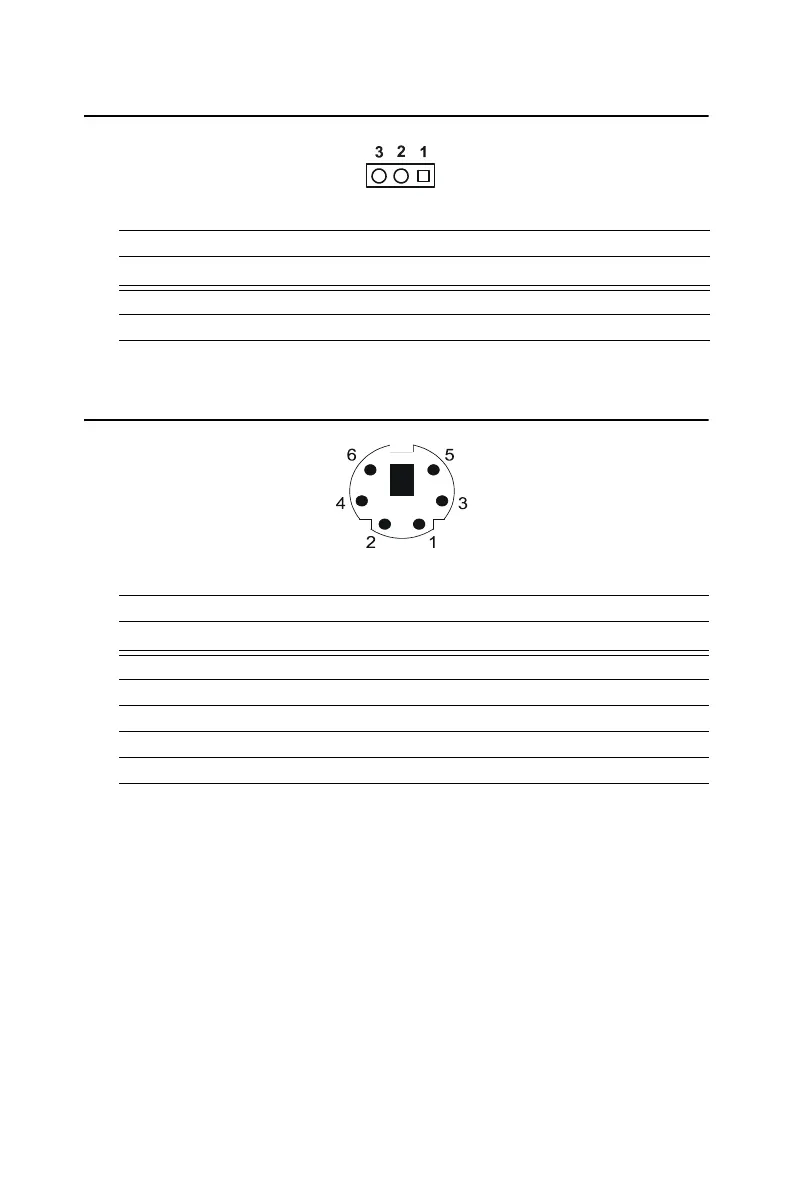

C.19 Negative power input connector(CN22)

C.20 Keyboard and Mouse connector(CN26)

Table C.19: Negative power input connector(CN22)

Pin Signal

1-5V

2GND

3 -12V

Table C.20: Keyboard and mouse connector(CN26)

Pin Signal

1 KBDATA

2MSDATA

3GND

4+5V

5 KBCLK

6MSCLK
