101 Appx. C

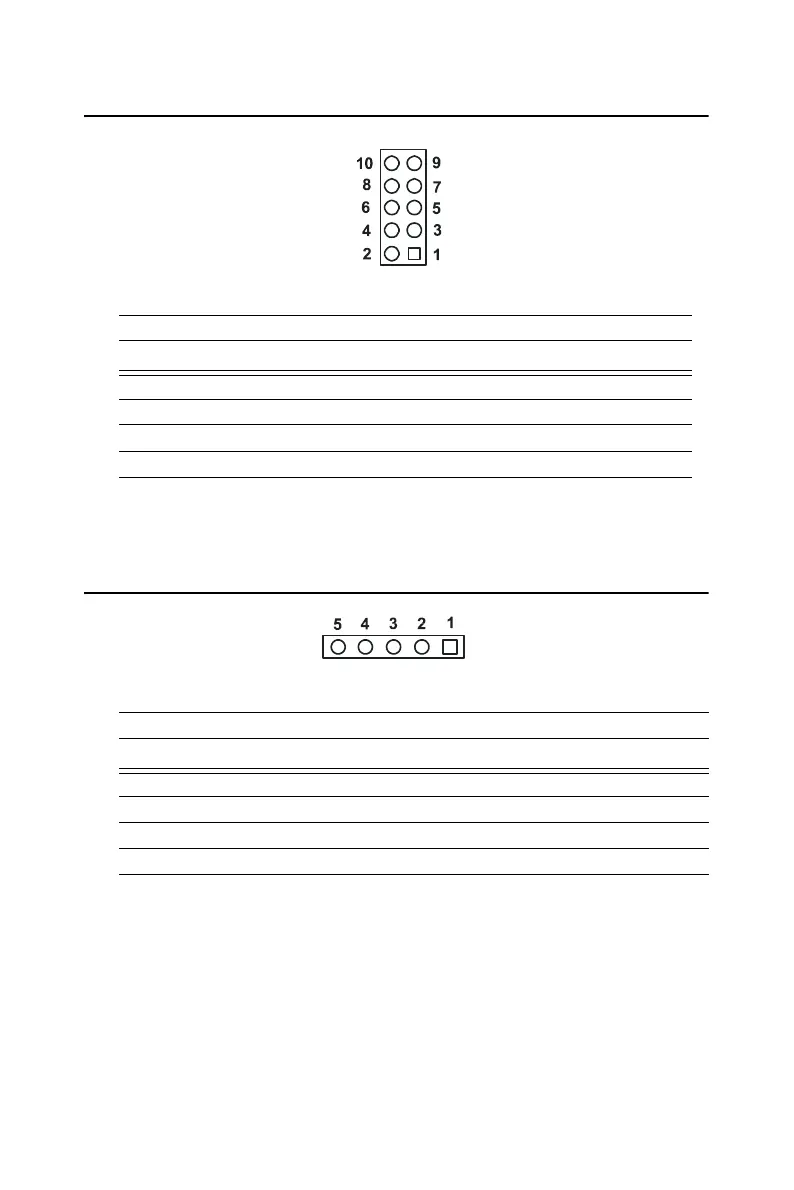

C.7 USB 3, 4 connector(CN9)

C.8 IR connector(CN13)

Table C.7: USB 3, 4 connector(CN9)

Pin Signal Pin Signal

1+5V 2+5V

3 USB0- 4 USB1-

5 USB0+ 6 USB1+

7 USB GND 8 USB GND

9 GND 10 NC

Table C.8: IR connector(CN13)

Pin Signal

1+5V

2NC

3RX

4GND

5TX
