109 Appx. C

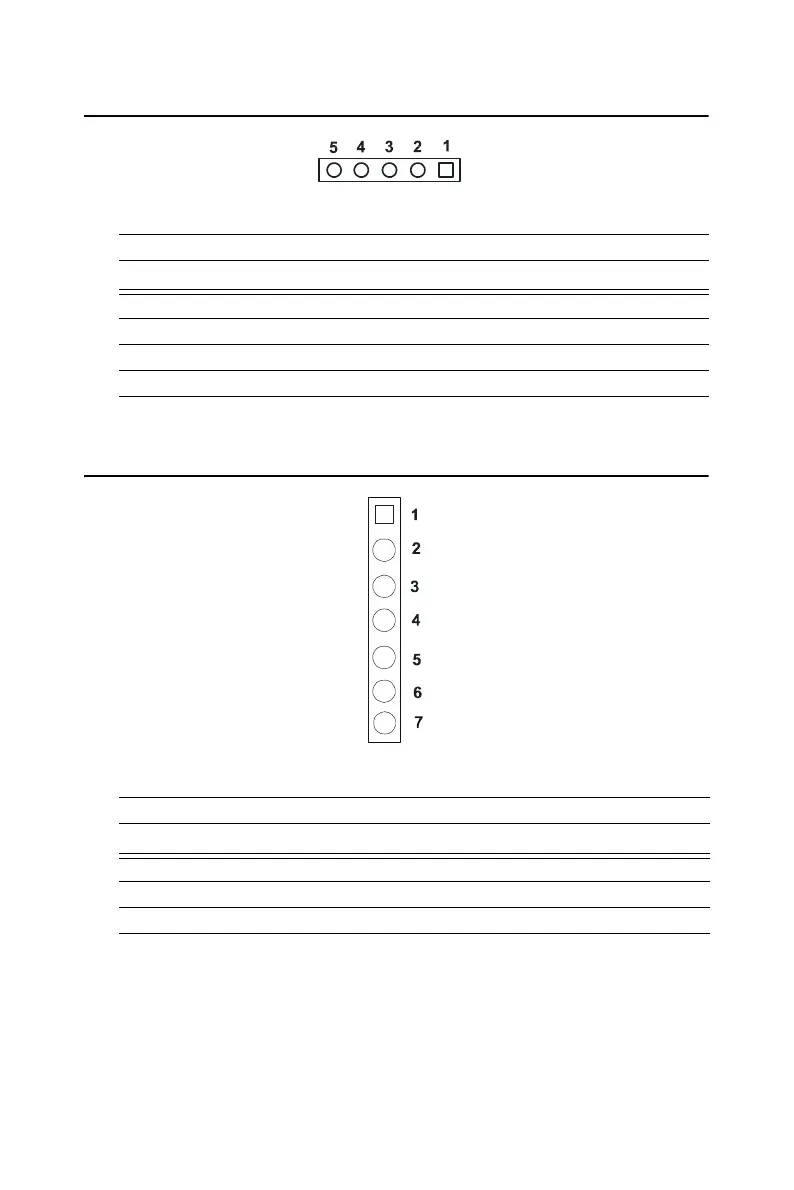

C.21 EXT_KB/Mouse connector(CN23)

C.22 Main power connector (CN19)

Table C.21: EXT_KB/Mouse connector(CN23)

Pin Signal

1 KBCLK

2 KBDATA

3NC

4GND

5+5V

Table C.22: Main power connector(CN19)

Pin Signal Pin Signal

1+5V 2GND

3GND 4+12V

5NC 6GND

7+5V
