105 Appx. C

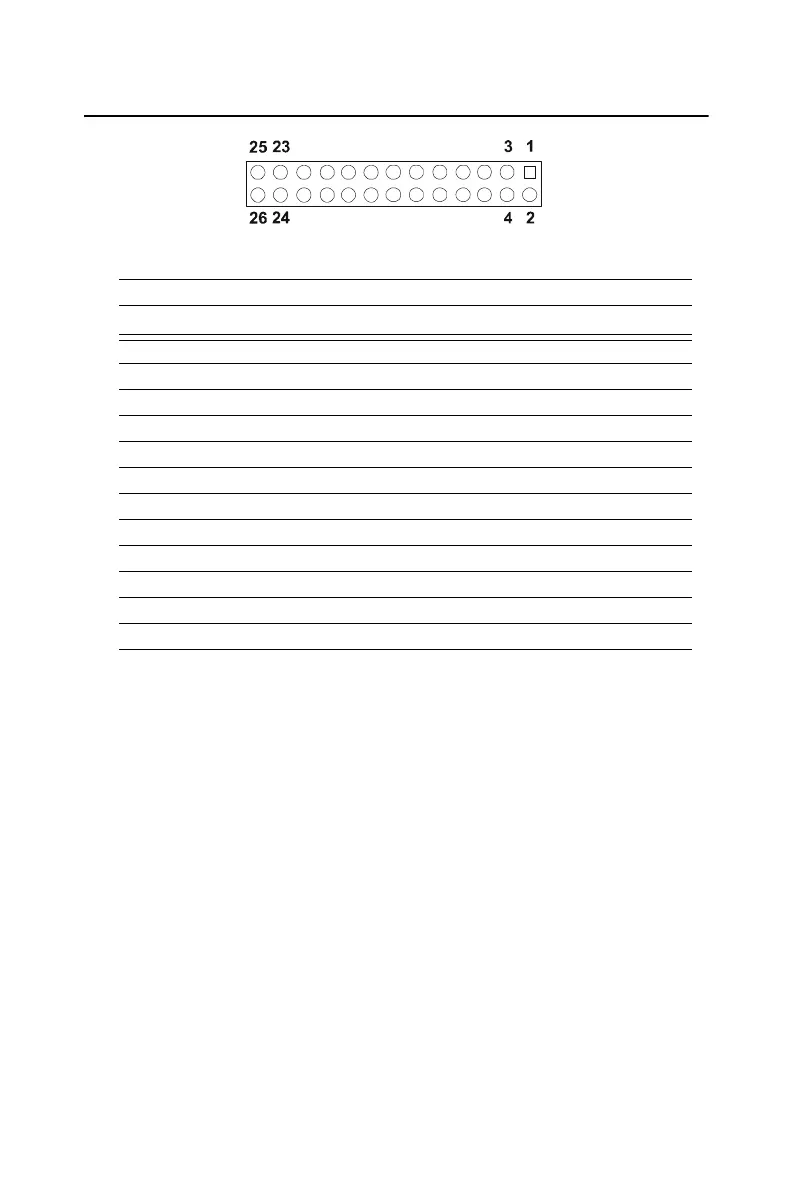

C.14 LPT connector(CN5)

Table C.14: LPT connector(CN5)

Pin Signal Pin Signal

1STB# 2AFD#

3D0 4ERR

5 D1 6 INIT#

7D2 8SLIN

9D3 10GND

11 D4 12 GND

13 D5 14 GND

15 D6 16 GND

17 D7 18 GND

19 ACK# 20 GND

21 BUSY 22 GND

23 PE 24 GND

25 SLCT 26 NC
