107 Appx. C

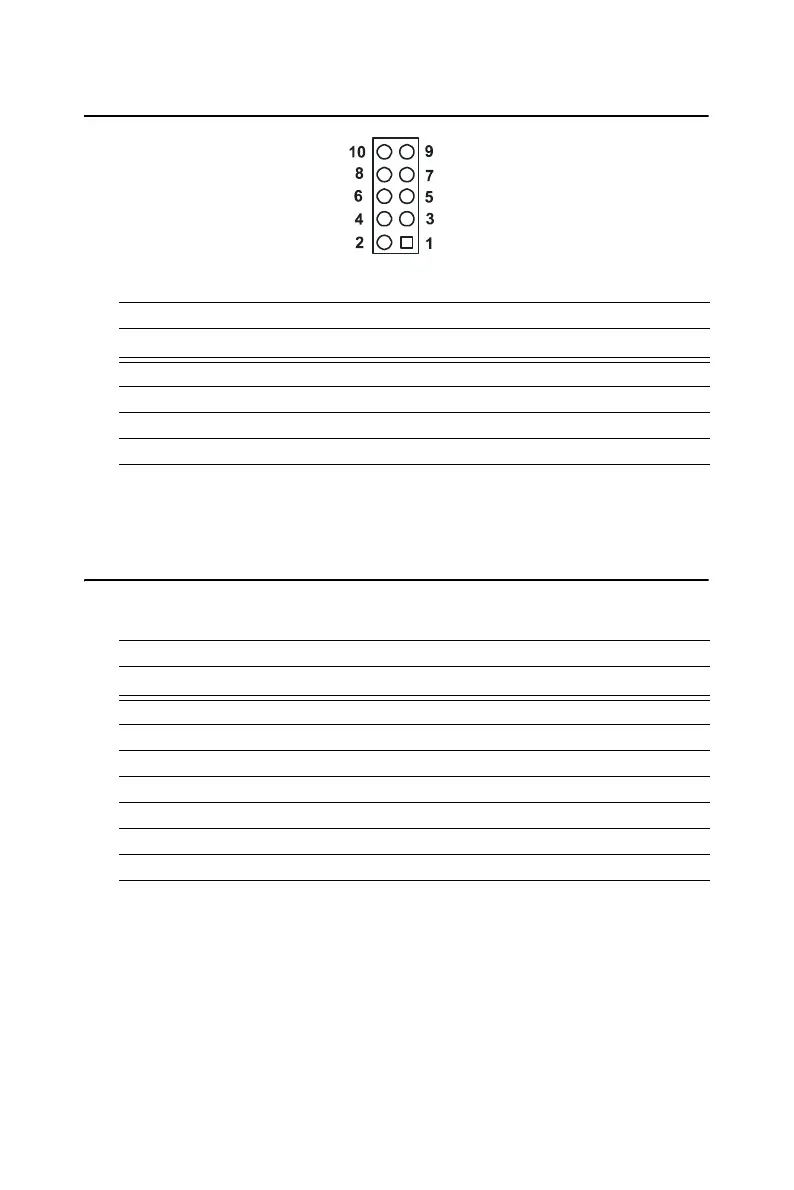

C.17 Audio I/F connector(CN12)

C.18 D-SUB VGA connector(CN16)

Table C.17: Audio I/F connector(CN12)

Pin Signal Pin Signal

1 +5V 2 BitCLK

3DATA IN 4GND

5 GND 6 Sync

7 DATA OUT 8 ACRST

9 +5V 10 PCBEEP

Table C.18: D-SUB VGA connector(CN16)

Pin Signal Pin Signal

1R 9+5V

2G 10GND

3B 11NC

4NC 12S-DATA

5 GND 13 HSYNC

6 GND 14 VSYNC

7 GND 15 S-CLK

8GND
