PCA-6773 User’s Manual 102

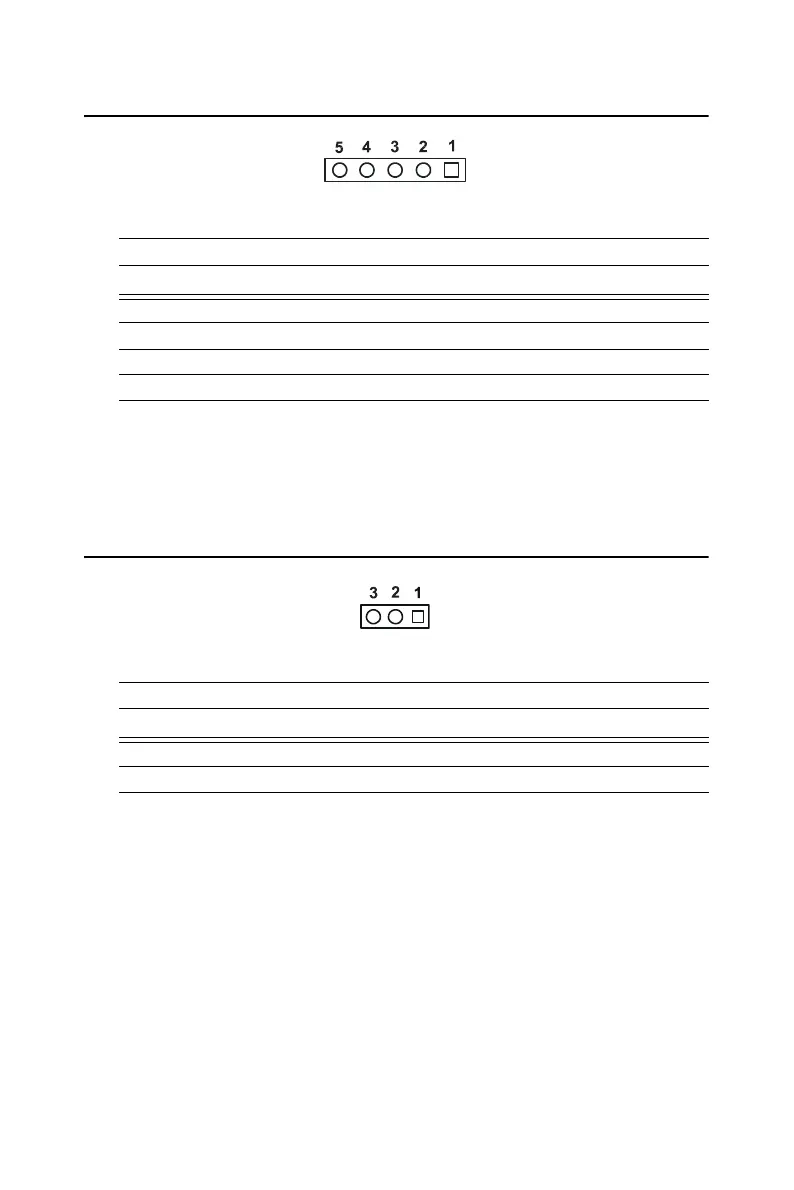

C.9 LCD INV power connector(CN8)

C.10 LCD Backlight connector(CN7)

Table C.9: LCD INV power connector (CN8)

Pin Signal

1 +12V output

2GND

3 Back-light enable signal output

4 Back-light VBR signal output

5 +5V output

Table C.10: LCD Backlight connector (CN7)

Pin Signal

1 connect to VR pin-1

2 connect to VR pin-2

3 connect to VR pin-3
