Advantech UNO-2484G V2 User Manual

UNO-2484G_V2 User Manual 86

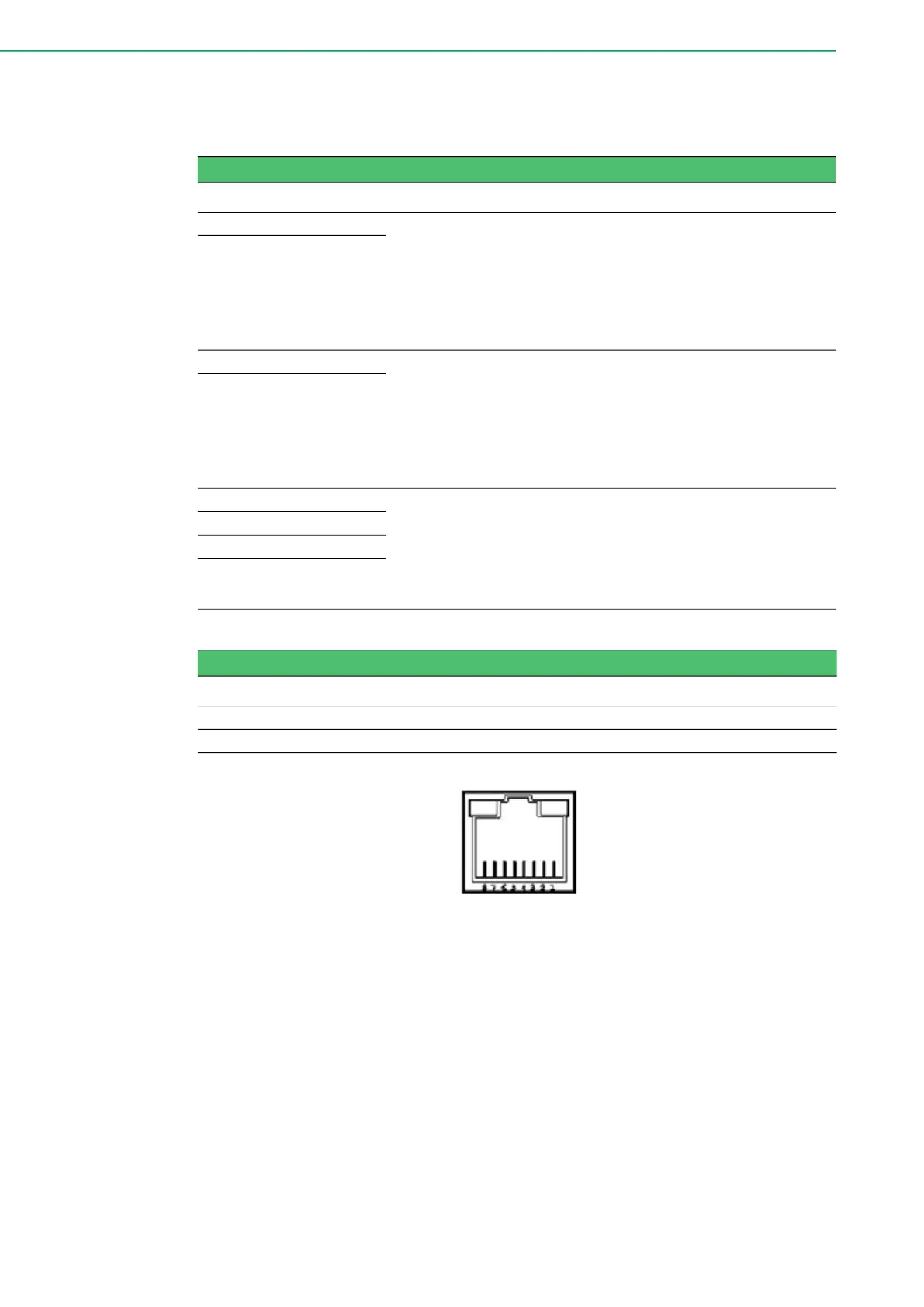

A.9 LAN1/2/3/4 RJ45 Connector
Table A.10: LAN1/2/3/4 RJ45 Connector
RJ45 Pin Signal Description
1 MDI0+  In BASE-T: Media-dependent interface[0]:
 1000BASE-T: In MDI configuration, MDI[0]+/- corresponds
to BI_DA+/- and in MDI-X configuration MDI[0]+/- corre-
sponds to BI_DB+/-.
 10BASE-T and 100BASE-TX: In MDI configuration,
MDI[0]+/- is used for the transmit pair and in MDIX configu-
ration MDI[0]+/- is used for the receive pair.
2 MDI0-
3 MDI1+  In BASE-T: Media-dependent interface[1]:
 1000BASE-T: In MDI configuration, MDI[1]+/- corresponds
to BI_DB+ and in MDI-X configuration MDI[1]+/- corre-
sponds to BI_DA+/-.
 10BASE-T and 100BASE-TX: In MDI configuration,
MDI[1]+/- is used for the receive pair and in MDI-X configu-
ration MDI[1]+/- is used for the transmit pair.
6 MDI1-
4 MDI2+  In BASE-T: Media-dependent interface[3:2]:
 1000BASE-T: In MDI and in MDI-X configuration, MDI[2]+/-
corresponds to BI_DC+/- and MDI[3]+/- corresponds to
BI_DD+/-.
 100BASE-TX: Unused.
 10BASE-T: Unused.5
5 MDI2-
7 MDI3+
8 MDI3-
Table A.11: LED
Left LED Right LED
10Link 100Link 1000 Link Active
Off off Orange Green
