UNO-2484G_V2 User Manual 84

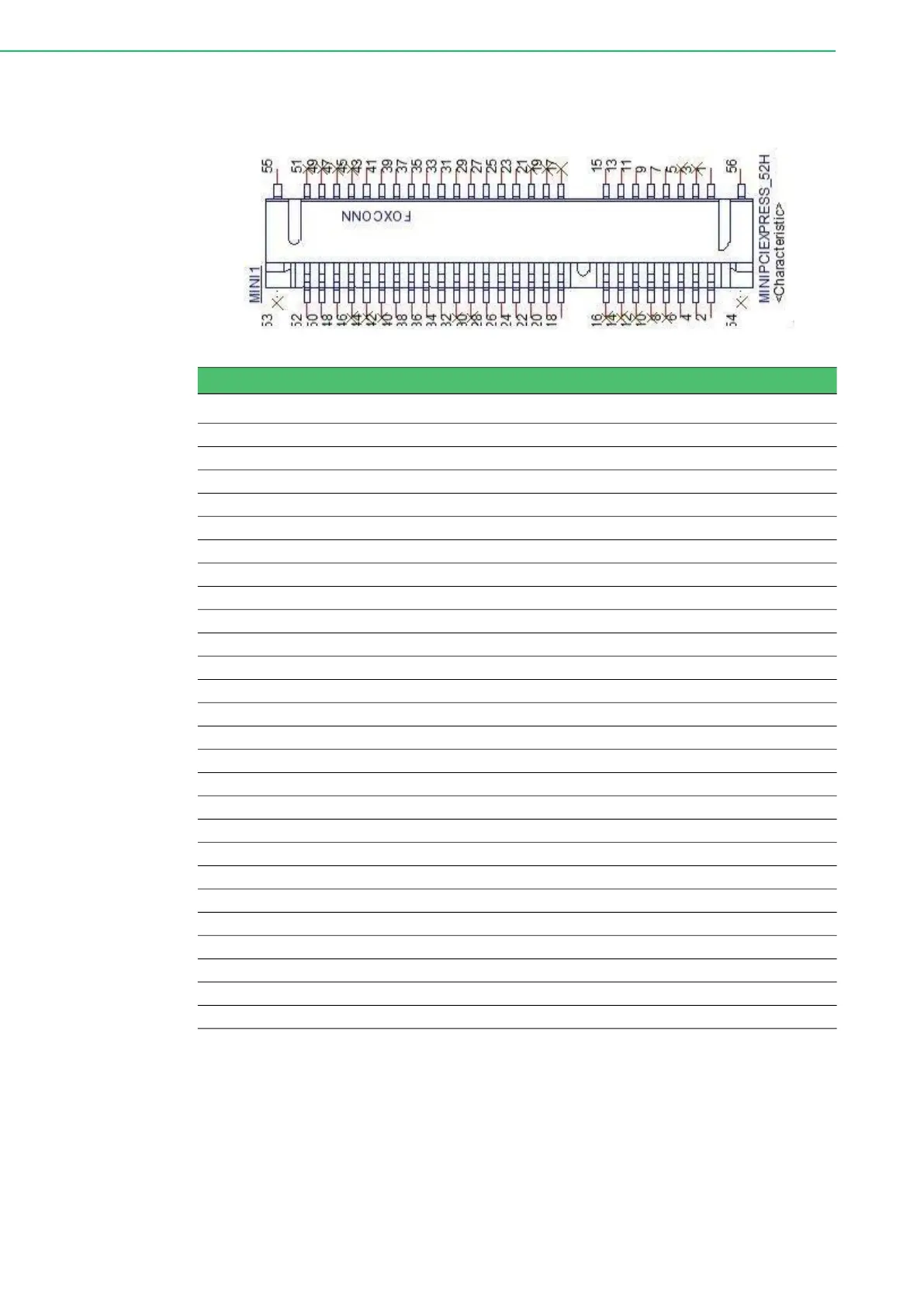

A.7 mPCIe Connector (MINIPCIE1/2)
Table A.8: mPCIe Connector Pin Assignments
Pin Signal Name Pin Signal Name
1 PCIE_WAKE# 2 +V3.3_MINI
3 NC 4 GND
5 NC 6 +V1.5
7 PCIEX1_CLKREQ0# 8 NC
9 GND 10 NC
11 CLK100M_PCIEX1_D0- 12 NC
13 CLK100M_PCIEX1_D0+ 14 NC
15 GND 16 NC
17 NC 18 GND
19 NC 20 WIFI_DISABLE#
21 NC 22 MINI_PLTRST#
23 SATA0_RX+ 24 +V3.3_MINI
25 SATA0_RX- 26 GND
27 GND 28 +V1.5
29 GND 30 NC
31 SATA0_TX- 32 NC
33 SATA0_TX+ 34 GND
35 GND 36 USB2_MPCI_P8-
37 GND 38 USB2_MPCI_P8+
39 +V3.3_MINI 40 GND
41 +V3.3_MINI 42 NC
43 MPCIE_PWRSEL 44 NC
45 NC 46 NC
47 NC 48 +V1.5
49 NC 50 GND
51 MSATA#_z_PCIE_SEL 52 +V3.3_MINI
