UNO-2484G_V2 User Manual 90

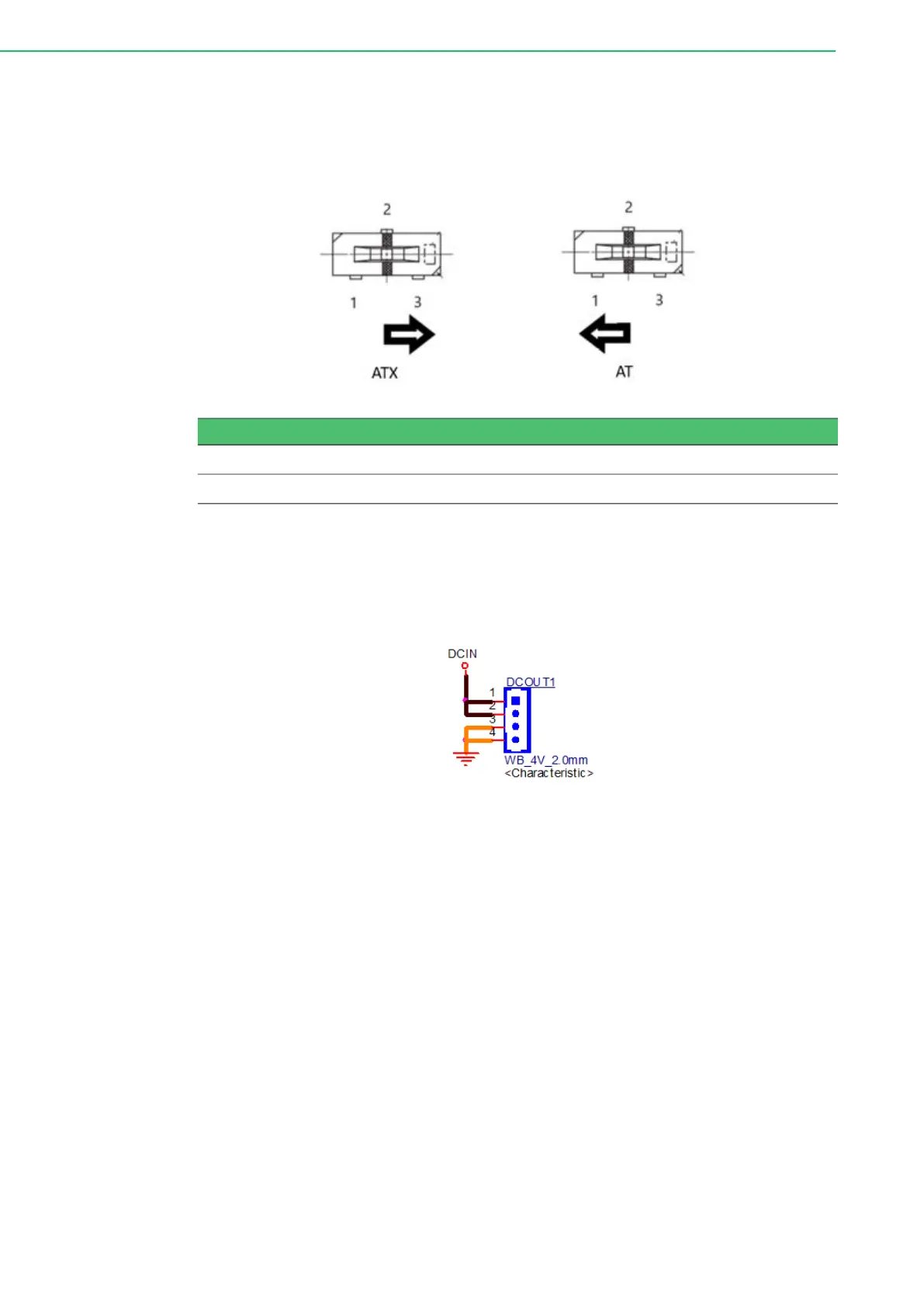

A.13 AT/ATX Setting (PSON1)
PSON1 can be used for AT/ATX setting. The default setting is ATX mode. See the fol-
lowing table for jumper configuration.
A.14 DC in Setting (DCOUT1)
DCOUT1 can be used for iDoor module. The power input follow iDoor module speci-
fication.
Table A.15: AT/ATX Setting (PSON1)
AT 1-2
ATX 2-3 Default
