UNO-2484G_V2 User Manual 88

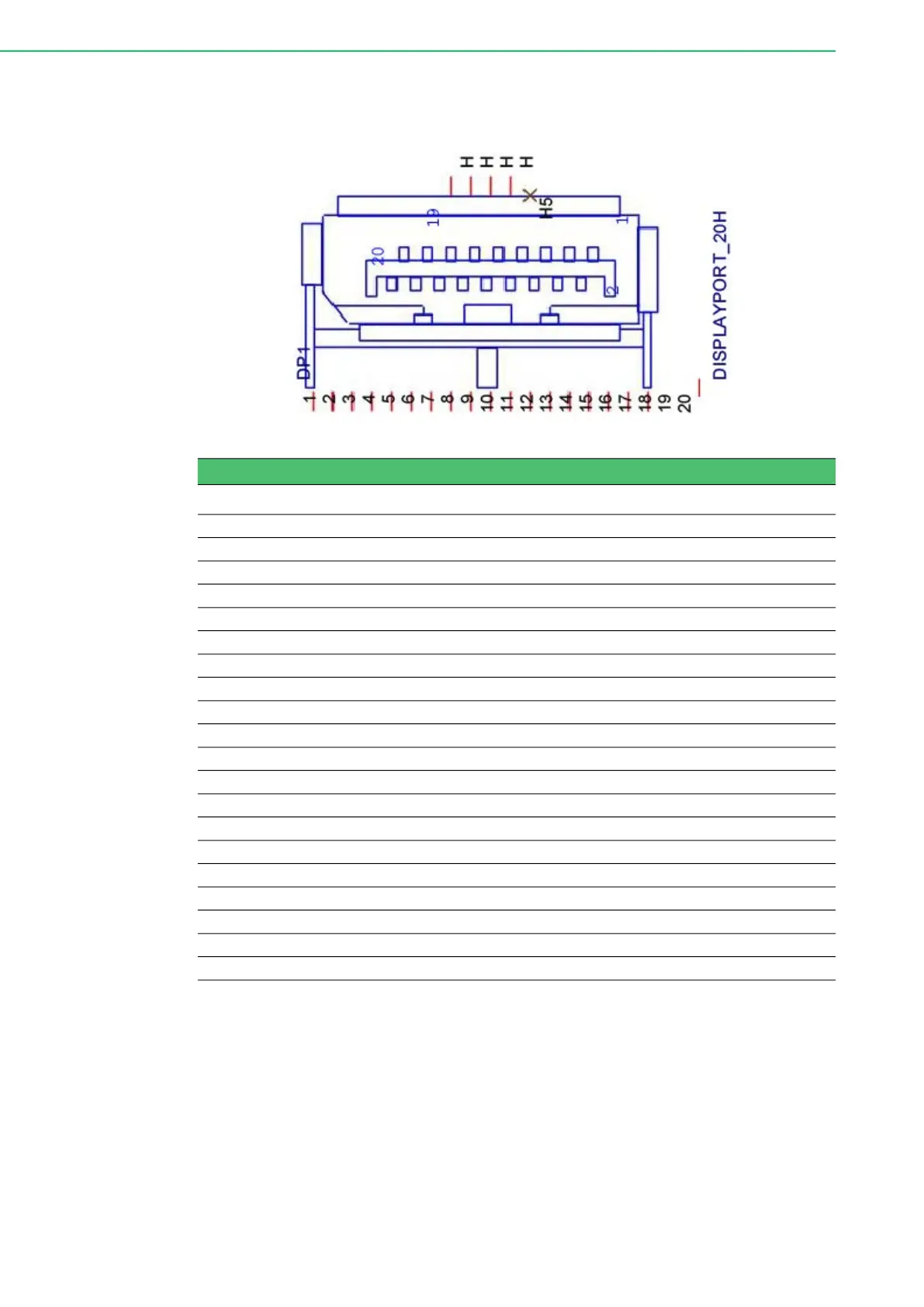

A.11 DP Connector (DP1)

Table A.13: Display Port Adapter Cable Pin Assignments

Pin Signal Name

1 DP0_z_D0+

2 GND

3 DP0_z_D0-

4 DP0_z_D1+

5 GND

6 DP0_z_D1-

7 DP0_z_D2+

8 GND

9 DP0_z_D2-

10 DP0_z_D3+

11 GND

12 DP0_z_D3-

13 DP0_AUX_EN#

14 DP0_CONFIG

15 DP0_AUX_P

16 GND

17 DP0_AUX_N

18 DP0_z_HPD

19 GND

20 +V3.3
