85 UNO-2484G_V2 User Manual

Appendix A System Settings/Pin Assignments

A.8 COM Port RS232/422/485 Settings

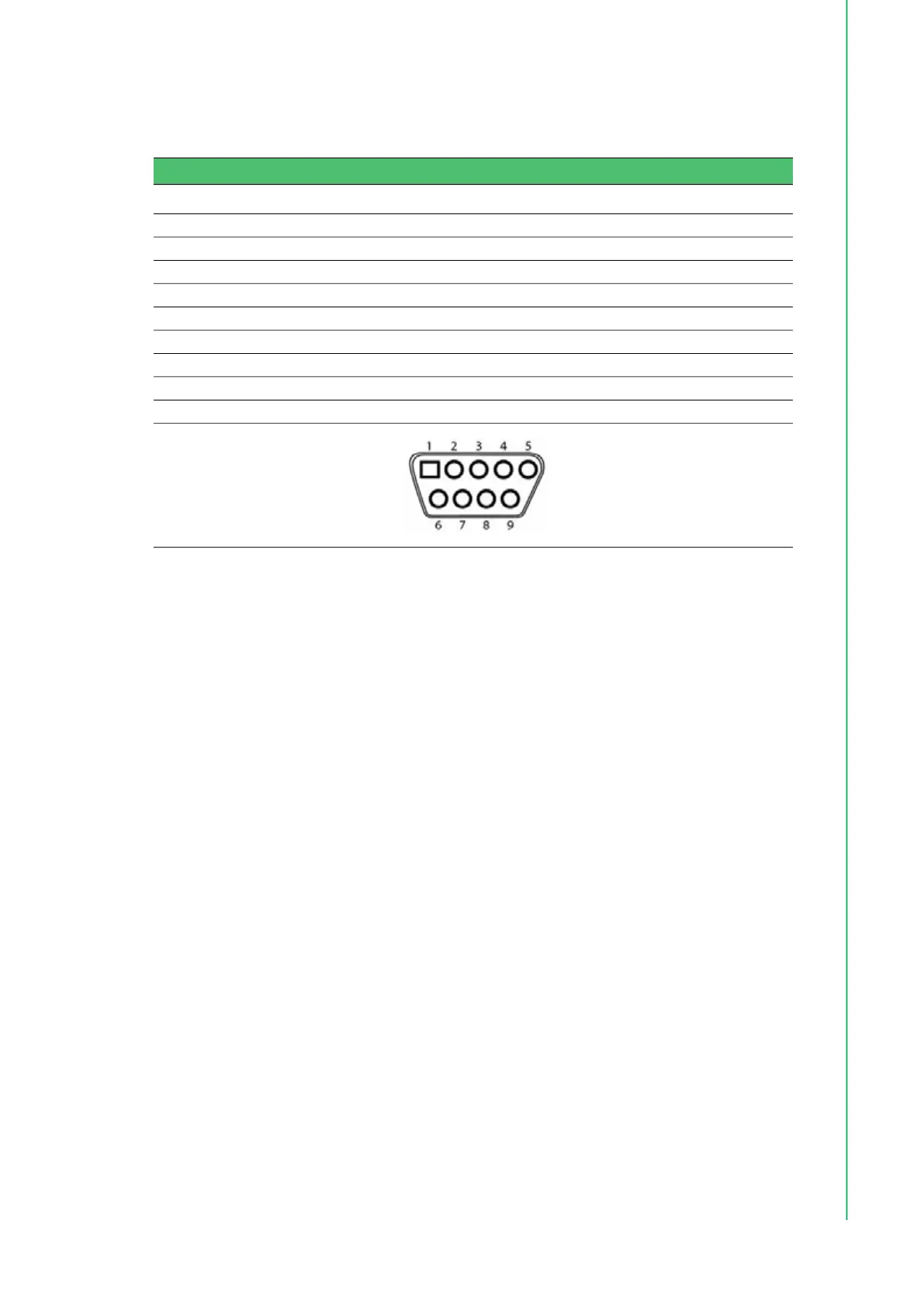

Table A.9: COM Port RS232/422/485 Settings

Pin RS232 RS422 RS485

1 DCD TX- D-

2 RX TX+ D+

3 TX RX+

4 DTR RX-

5 GND GND GND

6 DSR

7 RTS

8 CTS

9 RI
