3 WISE-4610(P) User Manual
Chapter 1 Product Introduction
1.4 System Diagram

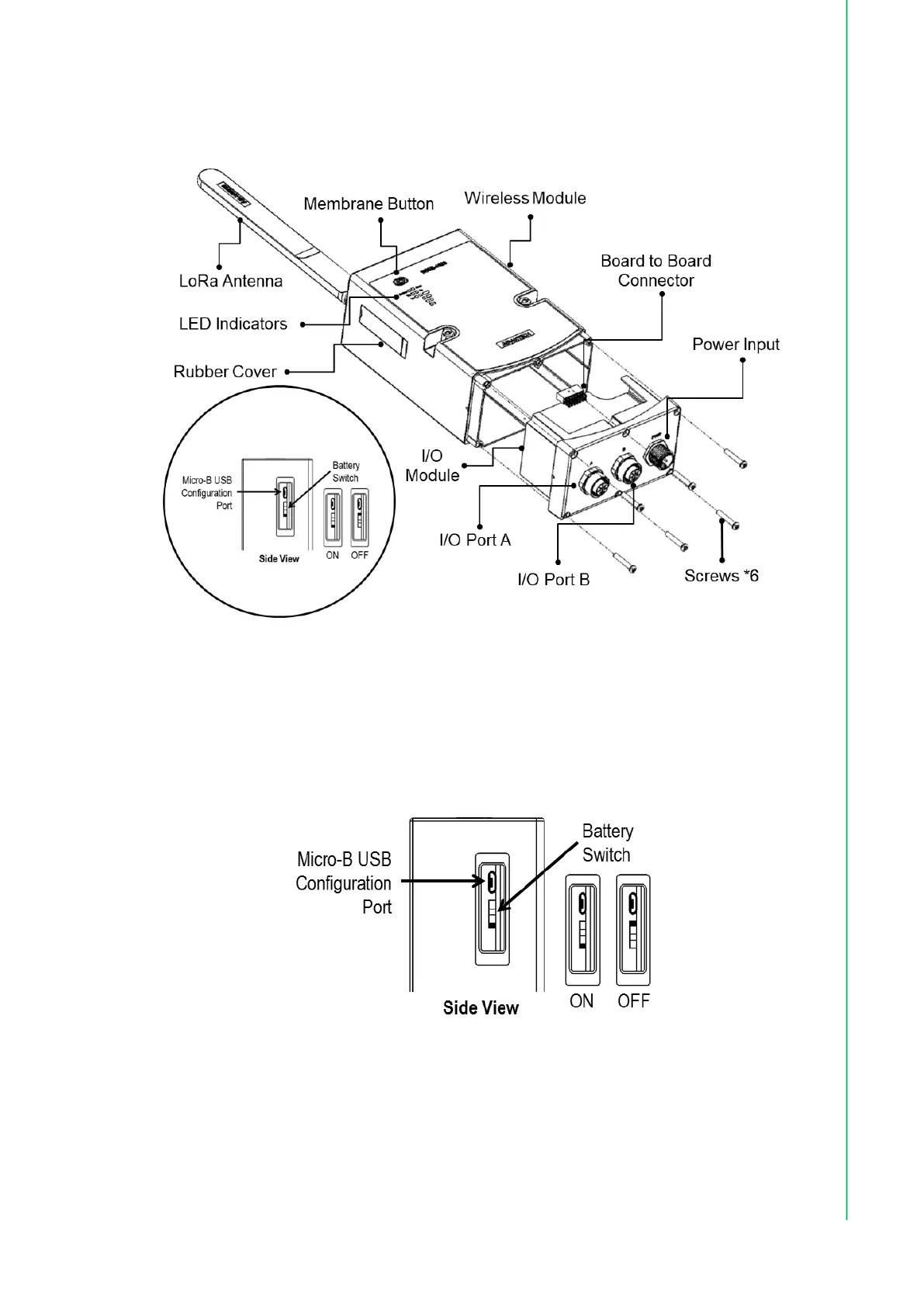

Figure 1.1 WISE-4610 System Diagram
1.5 Battery Switch
The WISE-4610 module is equipped with a switch to turn the battery ON/OFF. This
switch is located at the side of the WISE-4610 module. Simply open the rubber cover
and flick the switch to turn ON/OFF the battery power.
Figure 1.2 WISE-4610 Battery Switch
