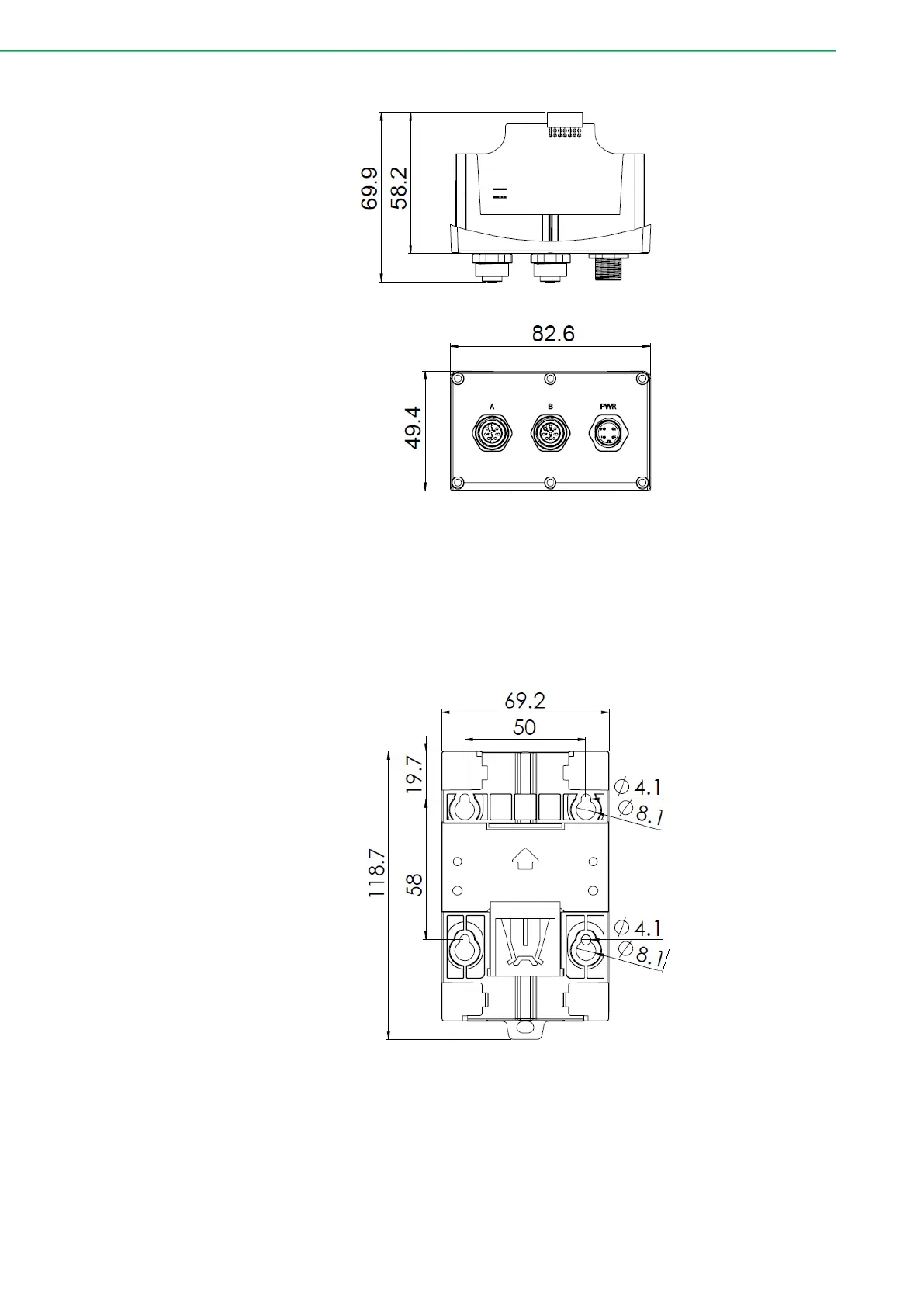

Figure 2.3 WISE-S600 Series I/O Module Dimensions
2.3 DIN-Rail Mounting
WISE-4610 modules can be fixed to a cabinet with mount rails. Use a flathead screw-
driver to affix the DIN rail mounting adapter to the module. Then attach the end
brackets provided with the product to prevent sliding.
Figure 2.4 WISE-4000 Series Mount Kit Dimensions
