WISE-4610(P) User Manual
12

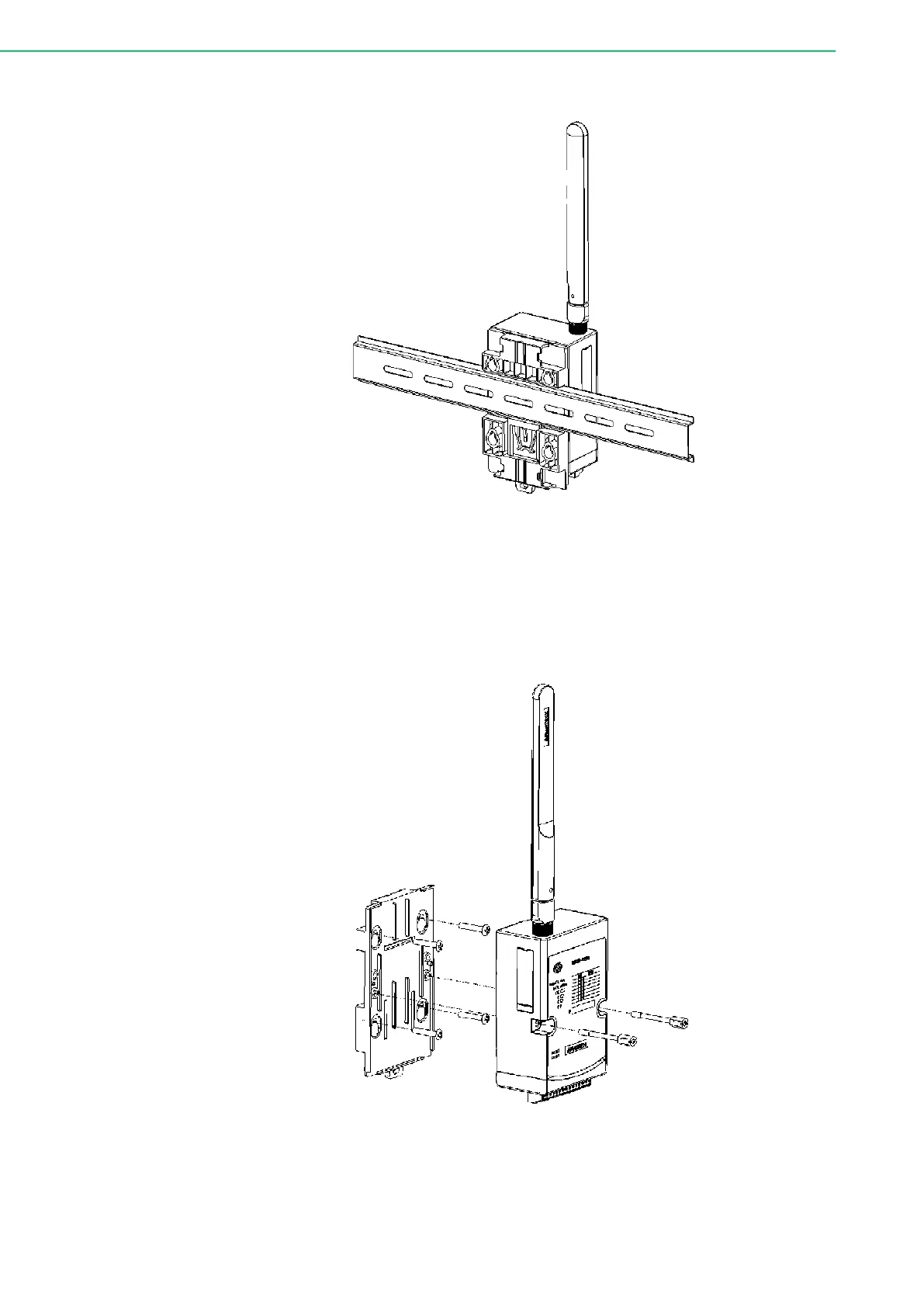

Figure 2.7 DIN-Rail Mounting (Rear
View)
2.4
W
a
ll Mounting
The
plastic
wall-mount
bracket
provided
with
the
product,
can
be
used
to
mount
WISE-4610 on a wall, panel, or cabin
et.
Figure 2.8 W
all Mount Br
acket Installation
21
