Advantech WISE Series - I;O Pin Assignment

21 WISE-4610(P) User Manual
Chapter 3 Hardware Specifications
3.6 I/O Pin Assignment

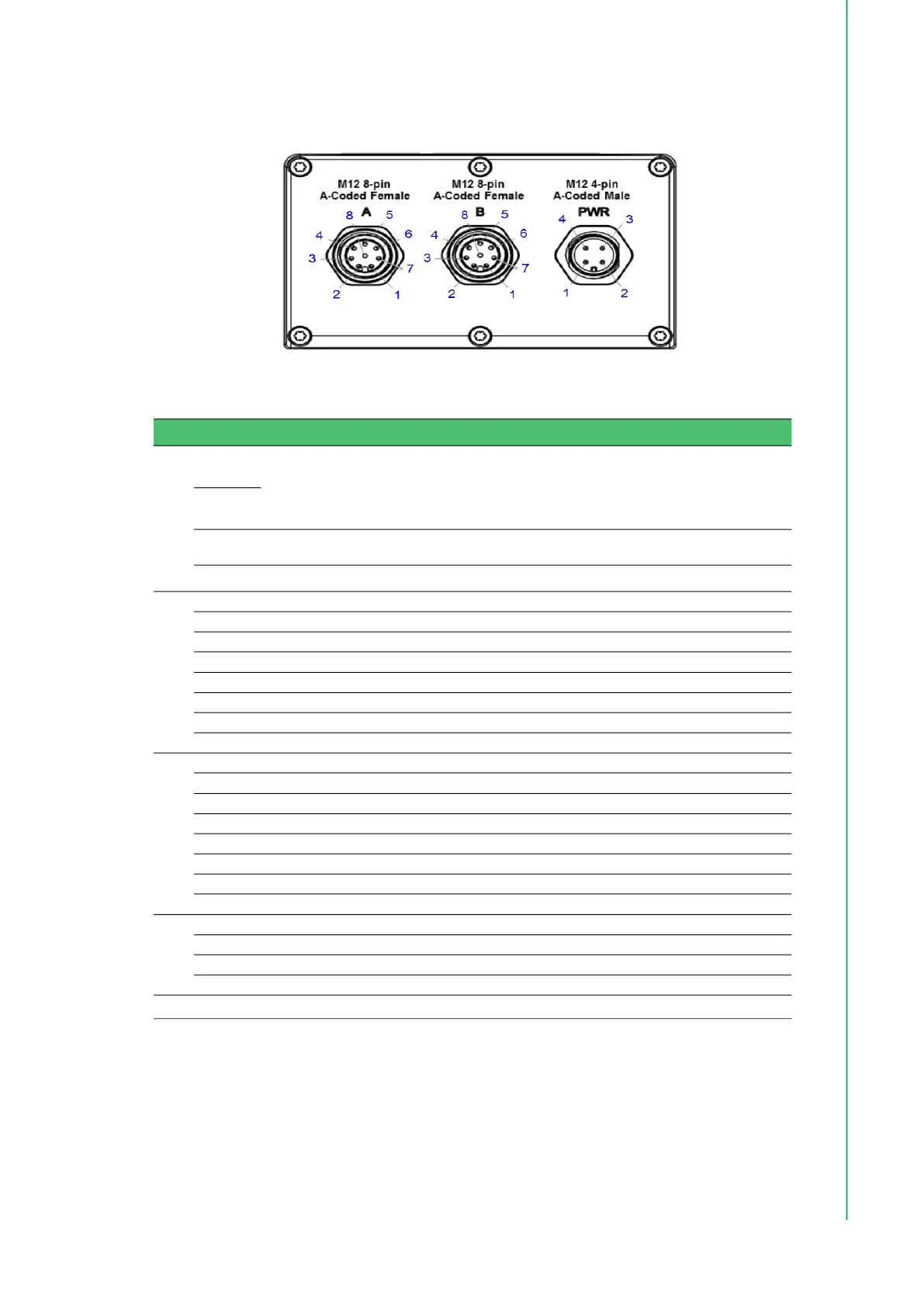

Figure 3.1 WISE-S600 Pin Out
Table 3.1: I/O Pin Assignment
Model
Name
M12 Cable WISE-S672 WISE-S614 WISE-S615 WISE-S617
Pin
Number
PCB P/N
4Pin: 1700028162-01
8Pin: 1700028163-01
19A3DC7200-01 19A3DB1402-01 19A3DC1500-01 19A3DC1700-01
Version A101-1 (M/P) A101-3 (M/P) A101-1 (ES1) A101-1 (ES1)
A
1 White DI 0 DI 0 RTD0+ AI 0+
2 Brown DI 1 DI 1 RTD0- AI 0-
3 Green DI 2 DI 2 RTD0 COM +12V Out0
4 Yellow DI 3 DI 3 NC +12V Out GND
5 Gray DI 4 NC RTD1+ AI 1+
6 Pink DI 5 NC RTD1- AI 1-
7 Blue NC NC RTD1 COM +12V Out1
8 Red DI COM DI COM NC +12V Out GND
B
1 White DATA0- AI 0+ RTD2+ DI 0
2 Brown DATA0+ AI 0- RTD2- DI 1
3 Green RS-232 TX AI 1+ RTD2 COM DI COM
4 Yellow RS-232 RX AI 1- NC DO 0
5 Gray DATA1- AI 2+ RTD3+ DO GND
6 Pink DATA1+ AI 2- RTD3- RS-485 D+
7 Blue NC AI 3+ RTD3 COM RS-485 D-
8 Red RS-232 GND AI 3- NC RS-485 GND
PWR
1 Brown +VS +VS +VS +VS
2 White -VS -VS -VS -VS
3 Blue SP+ SP+ SP+ SP+
4 Black NC SP- SP- SP-
Gray (NC)
