- 9 -
HV844-N 12.01 R.B. 599 51 30 44 EN
2) Internal

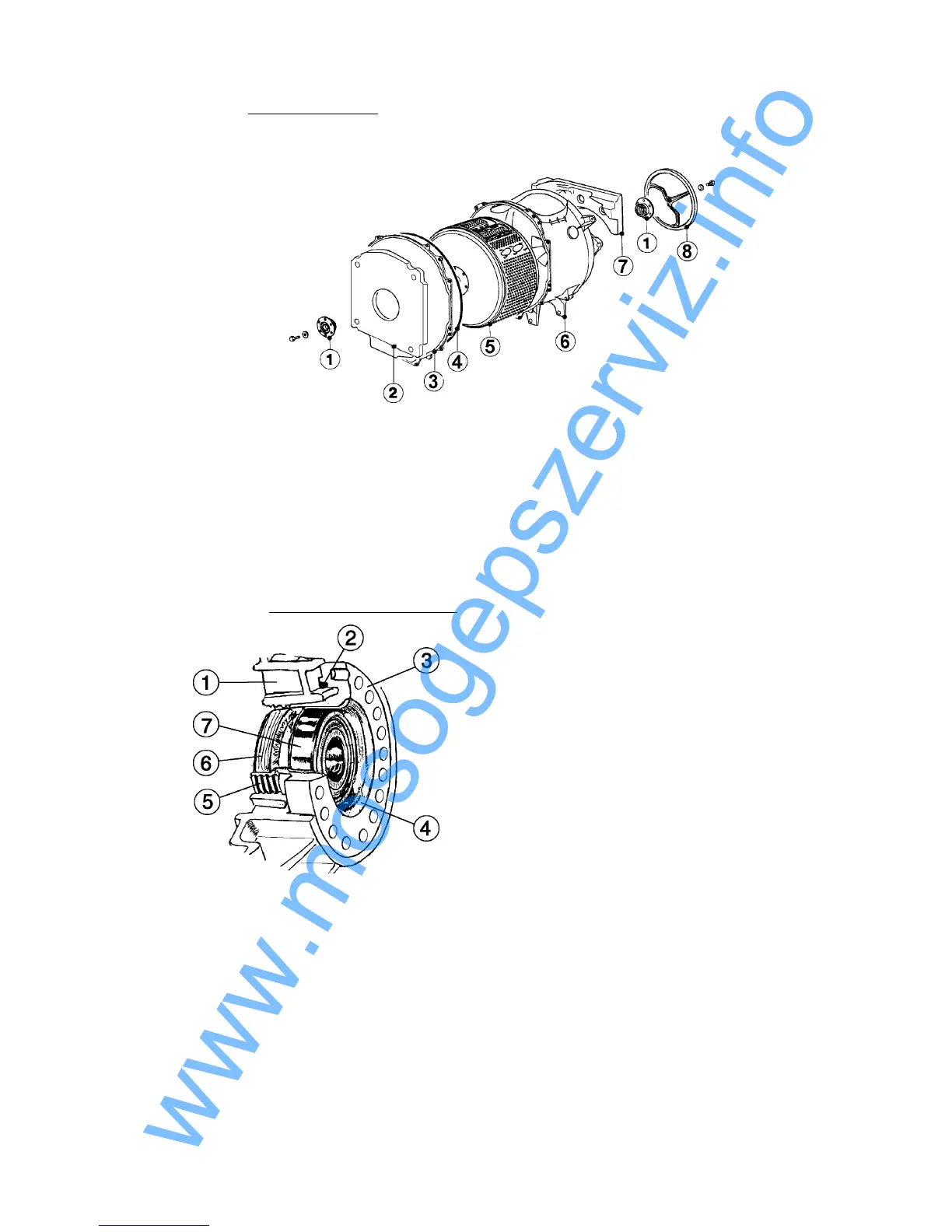

a) CARBORAN
®-
tub
1 - bearing
2 - left weight
3 - tub side panel
4 - tub gasket
5 - drum
6 - tub
7 - right weight
8 - pulley
CARBORAN
®-
tub bearing
1 - tub
2 - static gasket
3 - bearing body
4 - metallic insert of bearing
5 - threading of bearing body
6 - dynamic gasket
7 - bearing
Both bearings are screwed on the tub (1).
The bearing (7) is pressed into a metallic insert.
The bearing is sealed as follows:
- The gaskets (6) to the shaft are set into the bearing body. The bearing seat permits to
obtain a perfect concentricity between the bearing (7) and the gasket (6), which
guarantees a perfect sealing.
- The bearing seat on the tub is sealed by a gasket (2).
